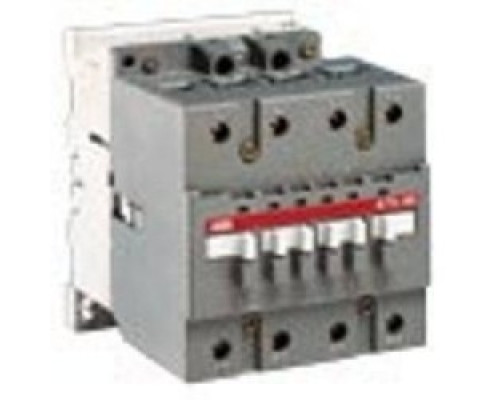

ABB AE16-30-00-81 AE16 Contactor, 3 NO Power, 24 V DC

Applications

For Controlling 3-Phase Motors And Generally Controlling Power Circuits Up To 690V AC Or 220 V DC; Other Applications Such As Isolation, Capacitor Switching, Lighting. A-Line contactors are mainly used for controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000V AC. and 440 V DC. AE types: with laminated magnetic circuit and double-winding coil fed from DC supply via a CDL5 insertion contact mounted on the device. The CDL 5 has an NC lagging contact for insertion of the second winding.

Features

• Contactors with laminated magnet circuit and double-winding coil fed from a DC Supply via a built-in N.C. lagging auxiliary contact
• Maximum UL/CSA horsepower ratings according to UL508 and CSA22.2 No. 14
• Includes NEMA sizes 4 - 8
• CE mark
• 1 NO & 1 NC auxiliary contacts are standard and up to 6 additional auxiliary contacts may be added to provide a total of 8 (4 NO & 4 NC)
• Contactors ensure positive safety between their auxiliary contact blocks.
• D.C. ratings and D.C. control operation available
• Easy maintenance of main contacts and coil inspection
• Can be mounted in any position
• Terminal lugs sold separately. See page 1.25.
• Operates over an extended voltage range of 85% to 110% of rated control voltage
• NEMA, UL, IEC, CSA, VDE and most other international standards
• UL File No: E79416 (A/AF145 - AF750)
• UL File No: E73397 (AF1350 - AF1650)
• CSA File No: LR19700

Specification Description

Coil Voltage: 24 V DC

Contact Configuration: 3 NO (Main)

Phase: 3 PH

Wattage: 4 kW At 220/230/240 V, 7.5 kW At 380/400 V, 9 kW At 415/440/500/690 V

Connection: Screw Terminal

Size: 44 mm Width X 74 mm Height X 74 mm Depth

Maximum Breakiy:

Tech Info

UL Listed, CSA, CE Certified, RoHS Compliant
