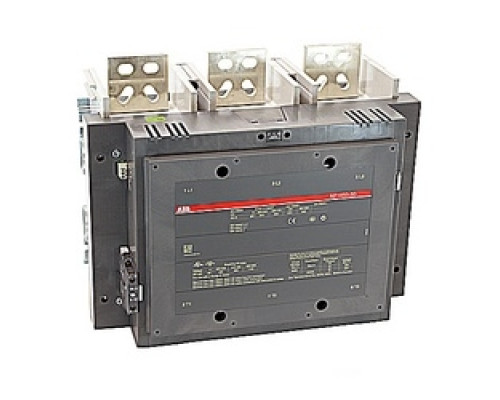

ABB AF1650-30-11-70 Non Rev Contactor, 3 Pole, 1NC/1NO Aux, 1650A, 100-250 V AC/DC Coil

Applications

For Various Applications Such As Motor Starting, Isolation, By-Pass And Distribution Application Up To Max 1000 V

Specification Description

Coil Voltage: 100 - 250 V AC At 50/60 Hz, 100 - 250 V DC
Contact Configuration: 3NO (Main), 1NO 1NC (Auxiliary)
Phase: 3 PH
Wattage: 315 kW At 220/230/240 V, 560 kW At 380/400 V, 600 kW At 415 V, 670 kW At 440 V, 700 kW At 500 V, 900 kW At 690 V
Conntion: Screw Terminal
Size: 438 mm Width X 392 mm Height X 244 mm Depth
Operating Temperature: Fitted With Thermal Overload Relay: -25 To +55 deg C, Without Thermal Overload Relay: -40 To +70 deg C, Fitted With Electronic Overload Relay: -25 To +70 deg C
Maximum Breaking Capacity: 12000 A At 440 V
Motor Rating: 900 hp At 480 V
Tightening Torque: 443 in-lb
Wire Size: Main Conductors: 1/0 AWG - 750 MCM (UL/CSA), Auxiliary Conductors: 18 - 14 AWG (UL/CSA)
Endurance: Mechanical: 5 Million Cycles
VoltRating: 1000 V
Environmental Conditions: Maximum Operating Altitude Permissible: 3000 m, Storage: -40 To +70 deg C
Impulse Withstand Voltage: 8 kV
Number Of Poles: 3
Enclosure: IP00 (Main Terminals), IP20 (Coil Terminals)
Insulation Voltage: 1000 V C 60947-4-1), 600 V (UL/CSA)
Operating Current: 1650 A At 40 deg C, 1450 A At 55 deg C, 1270 A At 70 deg C

Tech Info

CE Certified, RoHS Compliant
