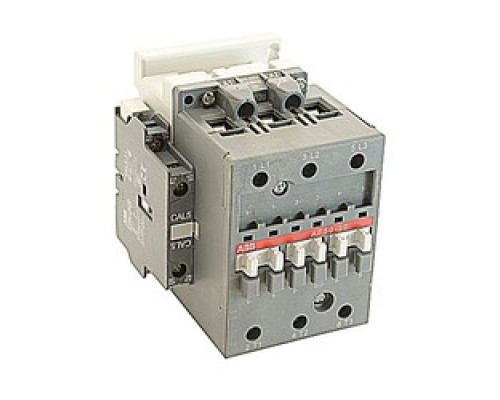

ABB AF50-30-11-70 AF50 Contactor, 3 NO Power, 1 NO/1 NC Aux, 100-250 V AC/DC

Applications

For Controlling 3-Phase Motors, For Controlling Power Circuits Up To 690V AC And 220 V DC, For Bypass, Capacitor Switching, Lighting, DC Power Circuits. ABB- Line - a system concept
Designed for easy and safe installation and maintenance
Easy to integrate with other system components,
Compact design.
A complete range of accessories
Complies with the latest international as well as national standards
Improved environmental performance

Features

• AF contactors include an electronic coil interface providing reduced pull-in and holding consumption, particularly for AC control circuits
• Only four coils are needed to cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC.
• AF offer extended operating limits and are suitable worldwide for different control voltages. e.g.: the coil 100...250 V 50/60 Hz - DC is suitable for Europe (230 V 50 Hz) and for North America (120 V 60 Hz and 208 V 60 Hz).
• AF contactors can manage large control voltage variations
• AF contactors equipped with a 24...60 V 50/60 Hz - 20...60 V DC coil allow direct control by 24 V DC 500 mA PLC-output
• AF contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance)
• AF contactors have built-in surge protection and do not require additional surge suppressors.

Specification Description

Coil Voltage: 100 - 250 V AC At 50/60 Hz, 100 - 250 V DC
Contact Configuration: 3NO (Main) 1NO (Auxiliary)
Wattage: 15 kW At 220/230/240 V, 22 kW At 380/400 V, 25 kW At 415/440 V, 30 kW At 500/690 V
Connection: Screw Terminal
Size: 82 mm Width X 110 Height X 108 mm Depth
Operating Temperature: Fitted With Thermal Overload Relay: -25 To +55 deg C, Without Thermal Overload Relay: -40 To +70 deg C
Operating time: 30 - 100 msec (NO closing), 27 - 95 msec (NC opening) between coil energization, 30 - 110 msec (NO opening), 35 - 115 msec (NC closed) between coil de-energization
Screwdriver type: Flat 5.5 Diameter / Pozidriv 2
Maximum Breaking Capacity: 630 A At 690 V, 1300 A At 440 V
Tightening Torque: 35 in-lb (Main Circuit), 9 in-lb (Control Circut)
Wire Size: (1 Or 2) 8 - 1 AWG (Main Pole), (1 Or 2) 18 - 14 AWG (Auxiliary)
Voltage Rating: 690 V (IEC)
Endurance: Mechanical: 10 Million Cycles
Operating Current: 100 A At 40 deg C, 85 A At 55 deg C, 70 A At 70 deg C
Impulse Withstand Voltage: 8
Number Of Poles: 3
Enclosure: IP10
Environmental Conditions: Maximum Operating Altitude Permissible: 3000 m, Storage Temperature: -60 To +80 deg C
Insulation Voltage: 1000 V (IEC 60947-4-1), 600 V (UL/CSA)

Tech Info

UL Listed, CSA, CCC Certified, IEC 60947-1 / 60947-4-1 And EN 60947-1 / 60947-4-1 Approved, RoHS Compliant
