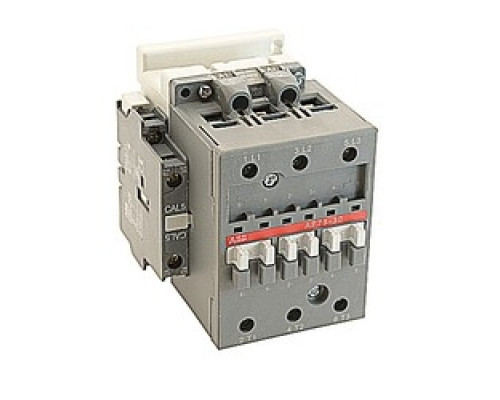

ABB AF75-30-11-72 AF75 Contactor, 3 NO Power, 1 NO/1 NC Aux, 20-60 V DC

Applications

For Controlling 3-Phase Motors And Generally For Controlling Power Circuits Up To 690V AC And 220 V DC, For Bypass, Capacitor Switching, Lighting, DC Power Circuits. ABB- Line - a system concept
Designed for easy and safe installation and maintenance
Easy to integrate with other system components,
Compact design.
A complete range of accessories
Complies with the latest international as well as national standards
Improved environmental performance

Features

• AF contactors include an electronic coil interface providing reduced pull-in and holding consumption, particularly for AC control circuits
• Only four coils are needed to cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC.
• AF offer extended operating limits and are suitable worldwide for different control voltages. e.g.: the coil 100...250 V 50/60 Hz - DC is suitable for Europe (230 V 50 Hz) and for North America (120 V 60 Hz and 208 V 60 Hz).
• AF contactors can manage large control voltage variations
• AF contactors equipped with a 24...60 V 50/60 Hz - 20...60 V DC coil allow direct control by 24 V DC 500 mA PLC-output
• AF contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance)
• AF contactors have built-in surge protection and do not require additional surge suppressors.

Specification Description

Coil Voltage: 20 - 60 V DC

Contact Configuration: 3NO (Main), 1NO 1NC (Auxiliary)

Wattage: 22 kW At 220/230/240 V, 37 kW At 380/400 V, 40 kW At 415/440/690 V, 45 kW At 500 V

Connection: Screw Terminal

Size: 82 mm Width X 110 mm Height X 108 mh

Tech Info

UL 508 LIsted, CSA C22.2 No.14, CCC Certified, IEC 60947-1 / 60947-4-1 And EN 60947-1 / 60947-4-1 Approved, RoHS Compliant
