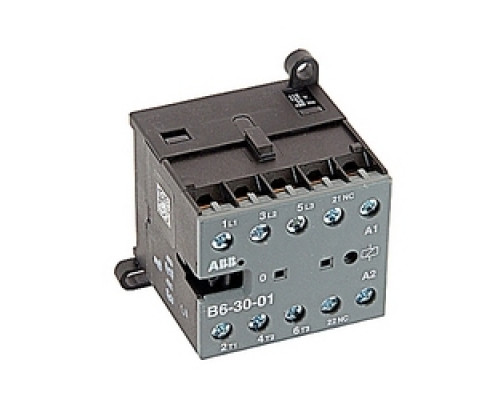

ABB B6-30-01-84 Mini Contactor, Non Rev, 3Pole, 12A, 1NC Aux Cont 110-127 V AC Coil

Applications

For Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Single Or Three-Phase Loads Up To 4 kW (AC-3) And 20 A/690 V (AC-1) Or Switching Of Control Signals

Specification Description

Coil Voltage: 110 - 127 V AC At 50/60 Hz
Contact Configuration: 3NO (Main) 1NC (Auxiliary)
Phase: 3 PH
Wattage: 2.2 kW At 220/230/240 V, 4 kW At 380/400/440 V, 3 kW At 500/690 V
Connection: Screw Terminal
Size: 52.5 mm Width X 57.5 mm Height X 46.5 Depth
Operating Temperature: -25 To +55 deg C
Wire stripping length: 9 mm
Motor Rating: 3 hp At 480 V
Tightening Torque: 7 in-lb
Maximum Breaking Capacity: 64 A At 400 V
Voltage Rating: 12 - 690 V AC (Main), 12 - 500 V AC/12 - 240 V DC (Auxiliary), V AC (UL/CSA)
Wire Size: Stranded: (1 Or 2) 22 - 10 AWG
Endurance: Mechanical: 10 Million Cycles
Operating Current: AC-1: 20 A At 220/240/380/440 For 40 deg C, 16 A At 220/240/380/440 For 55 deg C, AC-3: 9 A At 220/230/240/380/400 For 55 deg C, 8 A A 440 V For 55 deg C, 5.5 A At 500 V For 55 deg C, 3.5 A At 690 V For 55 deg C
Insulation Voltage: 690 V
Environmental Conditions: Maximum Operating Altitude Permissible: 2000 m, Storage Temperature: -40 To 80 deg C, Resistance to Vibrations Acc. To IEC 60068-2-6: 5G / 5 - 150 Hz
Enclosure: IP20
Number Of Poles: 4
Impulse Withstand Voltage: 6 kV

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, BV, CB, CCC, DNV, CE, GL, GOST, LR Certified, IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 Approved, RoHS Compliant
