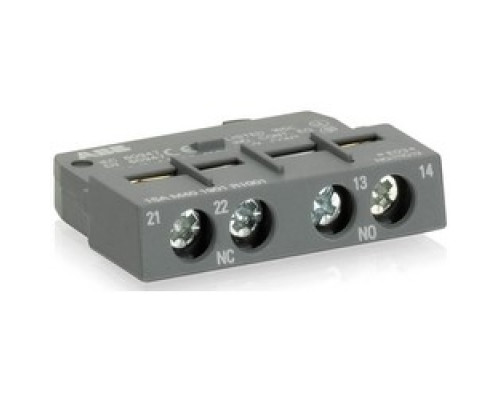

ABB HK4-11 Auxiliary Contact, 250 Volt AC/DC, 18 to 14 AWG Flexible/Stranded, 7 to 10.3 Lb-Inch, 1 NO-1 NC, 16 MM Length x 35 MM Width x 55 MM Height, For Manual Motor Starter

Applications

For MS450, MS495, MS497 Manual Motor Starters

Specification Description

Voltage Rating: 230/220 V AC/V DC
Amperage Rating: 2 A At 24 V AC, 0.5 A At 230 V AC, 1 A At 24 V DC, 0.3 A At 48 V DC, 0.15 A At 60 V DC
Frequency Rating: 50/60 Hz
Operating Temperature: -25 To +70 deg C
Endurance: Electrical And Mechanical: 10000 Orating Cycles
Auxiliary Contacts: 1 NO/1 NC
Number Of Blocks: 5

Tech Info

UL 508 Listed, CSA 22.2 No. 14 Certified, IEC/EN 60947-1, IEC/EN 60947-5-1 Approved
