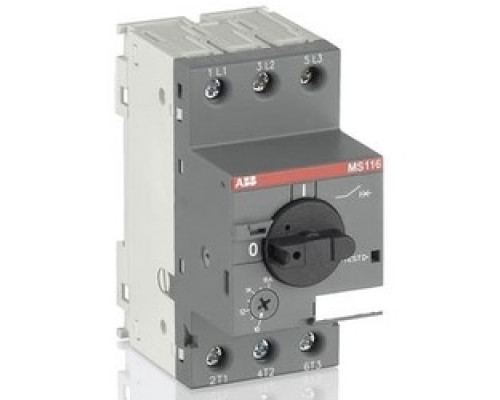

ABB MS116-2.5 Manual Motor Starter, DIN Rail, Rotary Handle Actuator, ON/OFF Indication, 690 Volt AC, 2.5 Ampere, 0.75 Kilowatt, 50/60 Hertz, 3-Pole, IP20

Applications

For MS116 Cover The Lower Ranges Up To 10 HP At 480 V & 600V And Provide Cost Effective And Economic Motor Protection In Many Applications; Very Efficient Is The Small Width, Thanks To Which The Customers Can Save Space And Costs In Installations, Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-circuits, Overload And Phase Failures, Suitable For Three- And Single-phase Applications

Specification Description

Voltage Rating: 690 V AC
Amperage Rating: 2.5 A
Wattage: 0.75 kW At 400 V
Setting: 1.6 - 2.5 A
Number Of Poles: 3
Enclosure: IP20
Mounting: 1 - 6 Position
DIN Rail: TH35-15 (35 mm Length X 15 mm Width), TH35-7.5 (35 mm Length X 7.5 mm Width)
Conn: Screw Terminal
Operating Cycles: 100000 Cycles (Electrical/Mechanical Durability)
Operating Temperature: -25 To +70 deg C
Environmental Conditions: Storage Temperature: -40 To 70 deg C
Pollution Degree: 3
Recommended Screw Driver: Pozidriv 2 / M3Actuator: Rotary Handle
Wire Strip Length: 9 mm
Tightening Torque: 10 in-lb
Connecting Capacity: Stranded, Flexible: (1 Or 2) 16 - 12 AWG
Storage Temperature: -50 To +80 deg C
Rated Impulse Withstand Voltage: 6 kV
Power Loss: 0.7 - 1.7 W Per Pole
ency Rating: 50/60 Hz
Breaking Capacity: Rated Service Short-Circuit/Rated Ultimate Short-Circuit: 50 kA At 230/400 V AC, 10 kA At 440/500 V AC, 5 kA At 690 V AC
Insulation Voltage: 690 V
Rated Instantaneous Short-circuit Current Setting (ii): 28.75

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE Certified, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 Approved, RoHS Compliant
