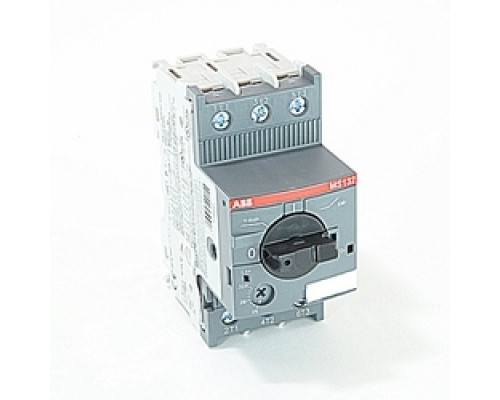

ABB MS132-32 MMP, 690/250V AC/V DC, 32 A at 400 V, 3 Pole

Applications

For Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-circuits, Overload And Phase Failures. Manual motor starters are electromechanical protection devices for the main circuit. They are used mainly to switch motors manually ON/OFF and protect them fuse less against short-circuit, overload and phase failures. Fuse less protection with a manual motor starter saves costs, space and ensures a quick reaction under shortcircuit condition, by switching off the motor within milliseconds. Fuse less starter combinations are setup together with contactors.

Features

• Overload protection trip class 10
• Phase loss sensitivity
• Disconnect function
• Temperature compensation from -25 +60 C
• Adjustable current setting for overload protection
• Suitable for three- and single-phase application
• Trip-free mechanism
• Status indication
• Clear switch position indication ON/OFF/TRIP
• Lockable handle

Specification Description

Voltage Rating: 690/250 V AC/V DC
Amperage Rating: 32 A
Wattage: 15 kW At 400 V
Setting: 25 - 32 A
Number Of Poles: 3
Enclosure: IP20
Mounting: 1 - 6 Position
DIN Rail: TH35-15 (35 mm Length X 15 mm Width), TH35-7.5 (35 mm Length X 7.5 mm Width)
tion: Screw Terminal
Operating Cycles: 50000/100000 Cycles (Electrical/Mechanical Durability)
Operating Temperature: -25 To +70 deg C
Environmental Conditions: Storage Temperature: -40 To 70 deg C
Pollution Degree: 3
Wire Strip Length: 10 mm
Recommd Screw Driver: Pozidriv 2 / M4
Actuator: Rotary Handle
Connecting Capacity: Stranded, Flexible: (1 Or 2) 12 - 8 AWG
Storage Temperature: -50 To +80 deg C
Tightening Torque: 18 in-lb
Power Loss: 1.9 - 3.1 W Per Pole
Insulation Voltage: 690 V
Breakapacity: Rated Service Short-Circuit/Rated Ultimate Short-Circuit: 25 kA At 230/400 V AC, 20 kA At 440 V AC, 10 kA At 500 V AC, 3 kA At 690 V AC, 10 kA At 250 V DC (3 Poles In Series)
Rated Instantaneous Short-circuit Current Setting (ii): 480 A
Frequency Rating: 50/60 Hz
Rated Impulse Withstand Voltage: 6 kV

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE Certified, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 Approved, RoHS Compliant
