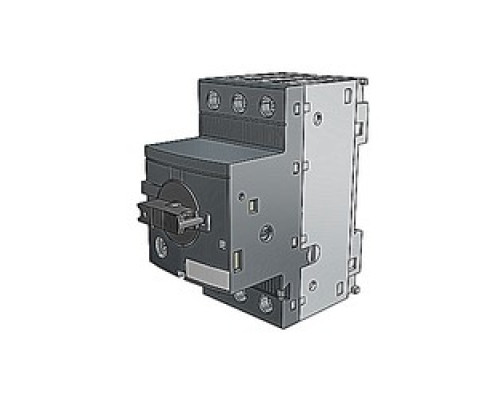

ABB MS132-4.0 MMP, 690/250V AC/V DC, 4 A at 400 V, 3 Pole

Applications

For Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-circuits, Overload And Phase Failures. Manual motor starters are electromechanical protection devices for the main circuit. They are used mainly to switch motors manually ON/OFF and protect them fuse less against short-circuit, overload and phase failures. Fuse less protection with a manual motor starter saves costs, space and ensures a quick reaction under shortcircuit condition, by switching off the motor within milliseconds. Fuse less starter combinations are setup together with contactors.

Features

• Overload protection trip class 10
• Phase loss sensitivity
• Disconnect function
• Temperature compensation from -25 +60 C
• Adjustable current setting for overload protection
• Suitable for three- and single-phase application
• Trip-free mechanism
• Status indication
• Clear switch position indication ON/OFF/TRIP
• Lockable handle

Specification Description

Voltage Rating: 690/250 V AC/V DC
Amperage Rating: 4 A
Wattage: 1.5 kW At 400 V
Setting: 2.5 - 4 A
Number Of Poles: 3
Enclosure: IP20
Mounting: 1 - 6 Position
DIN Rail: TH35-15 (35 mm Length X 15 mm Width), TH35-7.5 (35 mm Length X 7.5 mm Width)
tion: Screw Terminal
Operating Cycles: 50000/100000 Cycles (Electrical/Mechanical Durability)
Operating Temperature: -25 To +70 deg C
Environmental Conditions: Storage Temperature: -40 To 70 deg C
Recommended Screw Driver: Pozidriv 2 / M3.5
Pollutioegree: 3
Actuator: Rotary Handle
Wire Strip Length: 9 mm
Storage Temperature: -50 To +80 deg C
Connecting Capacity: Stranded, Flexible: (1 Or 2) 16 - 12 AWG
Tightening Torque: 10 - 12 in-lb
Breaking Capacity: Rated Service Short-Circuit/Rated UltimShort-Circuit: 100 kA At 230/400 V AC, 20 kA At 440/500 V AC, 3 kA At 690 V AC, 10 kA At 250 V DC (3 Poles In Series)
Rated Instantaneous Short-circuit Current Setting (ii): 50 A
Frequency Rating: 50/60 Hz
Rated Impulse Withstand Voltage: 6 kV
Insulaon Voltage: 690 V
Power Loss: 0.7 - 1.7 W Per Pole

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE Certified, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 Approved, RoHS Compliant
