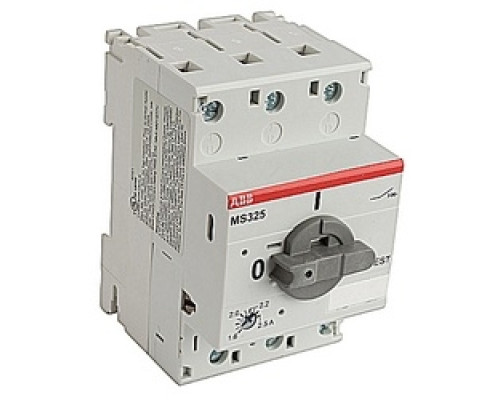

ABB MS325-2.5 3 Ph Starter Rated Current: 1.6-2.5 Trip Class: 10

Applications

For Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-circuits, Overload And Phase Failures

Specification Description

Voltage Rating: 690/440 V AC / V DC

Amperage Rating: 2.5 A

Wattage: 0.75 kW At 400 V

Setting: 1.6 - 2.5 A

Number Of Poles: 3

Phase: 3 PH

Enclosure: IP20

Mounting: 1 - 6 Position

DIN Rail: TH35-15 (35 mm Length X 15 mm Width), TH35ngt

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE Certified, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 Approved, RoHS Compliant
