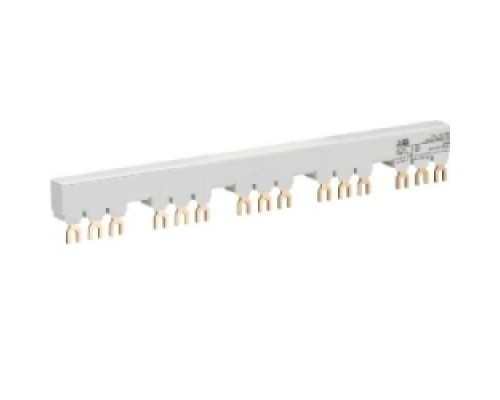

ABB PS1-5-1-65 PS1-5-1-65 3-phase busbar for 5 MS116 / MS132 with 1 HK/SK, Ie=65A

Applications

For MS116/MS132 Manual Motor Protectors

Features

• For 5 devices with 1 auxiliary switch

Specification Description

Amperage Rating: 65 A
Voltage Rating: 600 - 690 V
Size: 257.5 mm Width X 13 mm Height X 32.3 mm Depth
Phase: 3 PH
Environmental Conditions: Operating Temperature: -25 To 70 deg C, Storage Temperature: -50 To 80 deg C
Enclosure: IP20

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE, GOST Certified, IEC/EN 60947-1 Approved, RoHS Compliant
