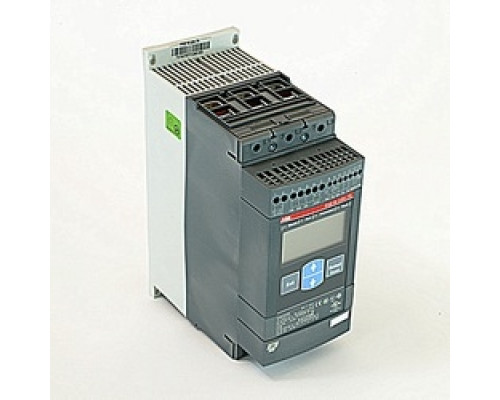

ABB PSE18-600-70 PSE Open Softstarter, 600 V AC Max, 18A

Applications

For Motor Protection And Torque Control For An Excellent Control Of Pumps

Specification Description

Voltage Rating: 208 - 600 V AC, 24 V DC
Amperage Rating: 18 A
Wattage: 4 kW At 230 V, 7.5 kW At 400 V, 11 kW At 500 V
Power Supply: 100 - 250 V AC
Connection: Screw Terminal
Operating Temperature: -25 To +60 deg C
Number Of Starts Per Hour: 10 At 3 Ie For 7 sec 50% ON Time 50% OFF Time
Frequency Rating: 50/60 Hz
Tightening Torque: Main Circuit: 9 N-m, Supply Circuit: 0.5 N-m, Control Circuit: 0.5 N-m
Storage Temperature: -40 To +70 deg C
Connecting Capacity: Main Circuit: (1 Or 2) 2.5 - 70 mm2igid, Control And Supply Circuit: (1) 2.5 mm2/(2) 1.5 mm2
Communication: Filed Bus Plug (Optional)
Starting Capacity At Maximum Rated Current Ie: 72 A For 10 sec
Adjustable Rated Motor Current (ie): 30 - 100%
Service Factor Percentage: 100%
Ramp TimFor Start: 1 - 30 sec, Stop: 0 - 30 sec
Analog Outputs: 4 - 20 mA
Signal Indication Of Ramp(led): Green
Signal Indication Protection (led): Yellow
Signal Indication Fault (led): Red
Current Limit Function: 27 - 126 A

Tech Info

CE Certified, RoHS Compliant
