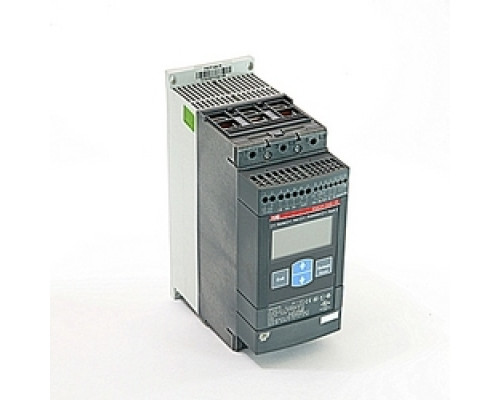

ABB PSE37-600-70 PSE Open Softstarter, 600 V AC Max, 34A

Applications

For Motor Protection And Torque Control For An Excellent Control Of Pumps

Specification Description

Voltage Rating: 208 - 600 V AC, 24 V DC
Amperage Rating: 37 A
Wattage: 9 kW At 230 V, 18.5 kW At 400 V, 22 kW At 500 V
Power Supply: 100 - 250 V AC
Connection: Screw Terminal
Operating Temperature: -25 To +60 deg C
Frequency Rating: 50/60 Hz
Conne Capacity: Main Circuit: (1 Or 2) 2.5 - 70 mm2 Rigid, Control And Supply Circuit: (1) 2.5 mm2/(2) 1.5 mm2
Number Of Starts Per Hour: 10 At 3.5 X Ie For 7 sec 50% ON Time 50% OFF Time
Communication: Filed Bus Plug (Optional)
Storage Temperature: -40 To+70 deg C
Tightening Torque: Main Circuit: 9 N-m, Supply Circuit: 0.5 N-m, Control Circuit: 0.5 N-m
Starting Capacity At Maximum Rated Current Ie: 148 A For 10 sec
Adjustable Rated Motor Current (ie): 30 - 100%
Service Factor Percentage: 100%
Currenimit Function: 55.5 - 259 A
Signal Indication Of Ramp(led): Green
Analog Outputs: 4 - 20 mA
Signal Indication Fault (led): Red
Ramp Time: For Start: 1 - 30 sec, Stop: 0 - 30 sec
Signal Indication Protection (led): Yellow

Tech Info

CE Certified, RoHS Compliant
