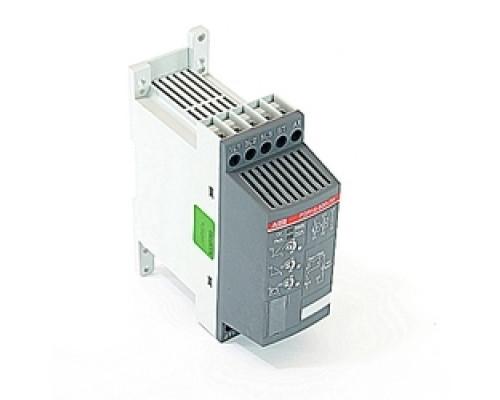

ABB PSR16-600-70 Soft Starter, PSR Series, 100-240 Control Voltage, 10 Hp

Applications

For Stopping Pumps: Even Without Using Torque Control, The PSR Range Is Designed To Reduce Water Hammering And Will Allow A Superior Stop Compared To The Direct Stop Resulting From A Star Delta Starter Or A DOL Starter

Specification Description

Voltage Rating: 208 - 600 V AC
Amperage Rating: 16 A
Wattage: 4 kW At 230 V, 7.5 kW At 400 V, 7.5 kW At 500 V
Power Supply: 100 - 240 V AC
Connection: Screw Terminal
Operating Temperature: -25 To +60 deg C
Frequency Rating: 50/60 Hz
Ramp Time: Fart: 1 - 10 sec, Stop: 0 - 20 sec
Service Factor Percentage: 100%
Starting Capacity At Maximum Rated Current Ie: 64 A For 6 sec
Number Of Starts Per Hour: 10 At 3.5 X Ie For 7 sec 50% ON Time 50% OFF Time
Tightening Torque: Main Circuit: 1 N-m, SupplCircuit: 1 N-m, Control Circuit: 1 N-m
Storage Temperature: -40 To +70 deg C
Signal Indication Of Ramp(led): Green
Connecting Capacity: Main Circuit: (1 Or 2) 0.75 - 2.5 mm2 Rigid, Control And Supply Circuit: (1 Or 2) 0.75 - 2.5 mm2 Rigid
Communicati: Filed Bus Plug (Optional)

Tech Info

CE Certified, RoHS Compliant
