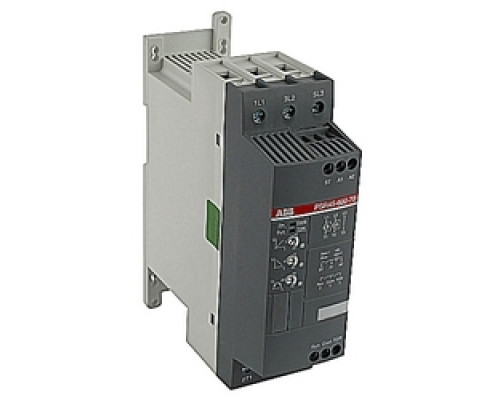

ABB PSR45-600-70 Soft Starter, PSR Series, 100-240 Control Voltage, 40 Hp

Applications

For Stopping Pumps: Even Without Using Torque Control, The PSR Range Is Designed To Reduce Water Hammering And Will Allow A Superior Stop Compared To The Direct Stop Resulting From A Star Delta Starter Or A DOL Starter

Specification Description

Voltage Rating: 208 - 600 V AC
Amperage Rating: 45 A
Wattage: 11 kW At 230 V, 22 kW At 400 V, 30 kW At 500 V
Power Supply: 100 - 240 V AC
Connection: Screw Terminal
Operating Temperature: -25 To +60 deg C
Frequency Rating: 50/60 Hz
Ramp Time: Fort: 1 - 10 sec, Stop: 0 - 20 sec
Starting Capacity At Maximum Rated Current Ie: 180 A For 6 sec
Service Factor Percentage: 100%
Signal Indication Of Ramp(led): Green
Storage Temperature: -40 To +70 deg C
Communication: Filed Bus Plug (Optional)
NumOf Starts Per Hour: 10 At 3.5 X Ie For 7 sec 50% ON Time 50% OFF Time
Connecting Capacity: Main Circuit: (1) 6 - 35 mm2/(2) 6 - 16 mm2 Rigid, Control And Supply Circuit: (1) 0.75 - 2.5 mm2/(2) 0.75 - 1.5 mm2 Rigid
Tightening Torque: Main Circuit: 4 N-m, Supply Circuit: 0.6 N-m, Control Circuit: 0.6 N-m

Tech Info

CE Certified, RoHS Compliant
