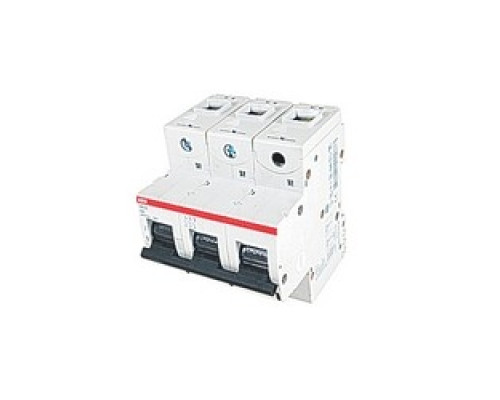

ABB S803S-K80 S800S high performance miniature circuit breaker, 3 poles, K characteristic, 80A 50kA 230AETBC400 V AC with interchangeable cage terminal, temperature compensation

Applications

For Building Installations, Transport And Renewable Energies To An Uninterrupted Power Supply

Features

• Current limiting
• Fast breaking time (2.3 - 2.5 ms)
• Wide range of accessories
• DIN rail mounting
• Finger safe terminals
• Multi-function terminals
• Ring tongue compatible

Specification Description

Voltage Rating: 400/690 V AC, 375 V DC
Amperage Rating: 80 A
Frequency Rating: 50/60 Hz
Interrupt Rating: Ultimate: 50 kA At 240/415 V AC, 30 kA At 254/440 V AC, 30 kA At 375 V DC
Number Of Poles: 3
Enclosure: IP20, IP40 (Actuating End Only)
Length mm
Width: 82.5 mm
Height: 95 mm
Operating Temperature: -25 To +60 deg C
Tripping Characteristic: K
Connecting Capacity: Copper Conductor: 1 - 50 mm2 Stranded, Flexible Cable: 1 - 70 mm2
Endurance: Electrical: 1500 Cycles, Mechanical: 8500 Cycles
nal Resistance: 1 mOhm Per Pole At 25 deg C
Mounting: DIN Rail
Tightening Torque: 3 - 4 N-m
Power Loss: 6.4 W Per Pole At 25 deg C

Tech Info

CE, IEC60947-2, EN60898 Certified, RoHS Compliant
