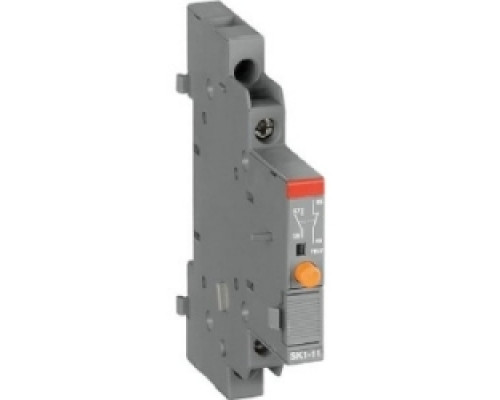

ABB SK1-11 Bell Alarm, 1 NO/1 NC, 690 V AC, screw termination

Applications

For MS116, MS132 Manual Motor Starters

Specification Description

Voltage Rating: 690/600 V AC/V DC
Size: 78.5 mm Length X 9 mm Width X 90 mm Height
Operating Temperature: -20 To +55 deg C
Wire Strip Length: Auxiliary Circuit: 8 mm
Connecting Capacity: (1 Or 2) 16 - 14 AWG Stranded And Flexible
Tightening Torque: iliary Circuit: 7 in-lb
Insulation Voltage: 690 V
Auxiliary Contacts: 1 NO/1 NC
Rated Impulse Withstand Voltage: Auxiliary Circuit: 6 kV
Recommended Screw Driver: Pozidriv 2 / M3
Contact Rating: B600, Q600

Tech Info

C/US UL Listed, CSA, ABS, BV, DNV, CE, GL, GOST, LR, RINA, IEC / EN 60947-1, IEC/EN 60947-5-1 Certified, RoHS Compliant
