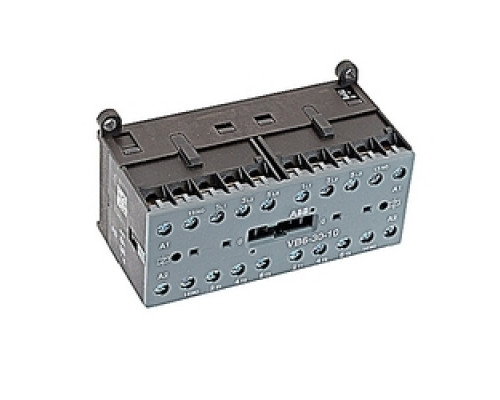

ABB VB6-30-10-84 Mini Contactor, Mech Interlock, 12A, 2 NO Aux Cont, 110-127 V AC Coil

Applications

For Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Three-Phase Motor Loads Up To 4 kW (AC-3)

Specification Description

Coil Voltage: 110 - 127 V AC
Contact Configuration: 3NO (Main) 1NO (Auxiliary)
Size: 96.5 mm Width X 57.5 mm Height X 46.5 mm Depth
Operating Temperature: -25 To +55 deg C
Pollution Degree: 3
Wire stripping length: 9 mm Power loss: 2 W per pole
Tiging Torque: 7 in-lb
Operating Current: AC-1: 20 A At 220/240/380/440 For 40 deg C, 16 A At 220/240/380/440 For 55 deg C, AC-3: 9 A At 220/230/240/380/400 For 55 deg C, 8 A At 440 V For 55 deg C, 5.5 A At 500 V For 55 deg C, 3.5 A At 690 V For 55 deg C
Wire Size: Stranded: (1 Or 2) 22 - 10 AWG
Voltage Rating: 12 - 690 V AC (Main), 12 - 500 V AC/12 - 240 V DC (Auxiliary), 600 V AC (UL/CSA)
Endurance: Mechanical: 10 Million Cycles
Impulse Withstand Voltage: 6 kV
Insulation Voltage: 690 V
EnvironmentConditions: Maximum Operating Altitude Permissible: 2000 m, Storage Temperature: -40 To 80 deg C, Resistance To Vibrations According To IEC 60068-2-6: 5 G / 5 - 150 Hz
Number Of Poles: 4
Enclosure: IP20

Tech Info

C/US UL 508 Listed, CSA 22.2 No. 14, CE Certified, RoHS Compliant, IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 Approved
