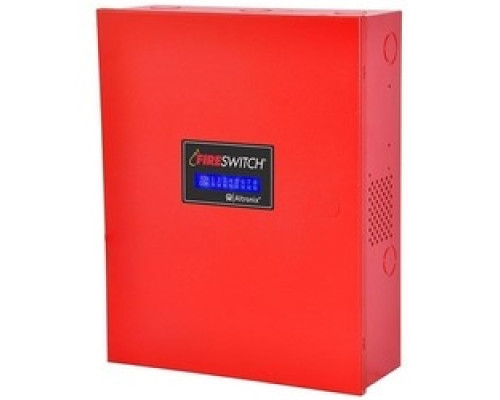

ALTRONIX FIRESWITCH108 NAC Power Supply, 4 Class A, 8 Class B, 24VDC @ 10A, LCD and Network Connection for Programming and Status Monitoring, 115VAC, Red BC400 Enclosure

Features

• Programmable LCD Display Interface
• EOL Resistor Value is Programmable by Output
• Ethernet Port Interface for Remote Programmability and Monitoring
• 2-Wire Horn/Strobe Sync Mode Allows Audible Notification Appliances (Horns) to be Silenced While Visual Ntification Appliances (Strobes) Continue to Operate
• Sync Protocols Include Potter, Gentex, System Sensor and Cooper Wheelock
• Temporal Code 3, Steady Mode, Input to Output Follower Mode (Maintains Synchronization of Notification Appliances Circuit)
• Comatible with 12VDC or 24VDC Fire Panels
• Output Loop Supervision Directed to Input 1 or Input 2
• Common Trouble Dry N.C Output for Reporting Trouble to Remote FACP
• Ground Fault Detection-Ground Fault Maximum Test Impedance 1000 Ohm
• Ground Fault Dry N.O tput to Report Ground Fault to Remote FACP
• Co Temporal Code 4 Include Gentex, Potter and System Sensor Device

Tech Info

UL, CAN/ULC, NFPA 72, CSFM
