Spec SheetSpecification Description

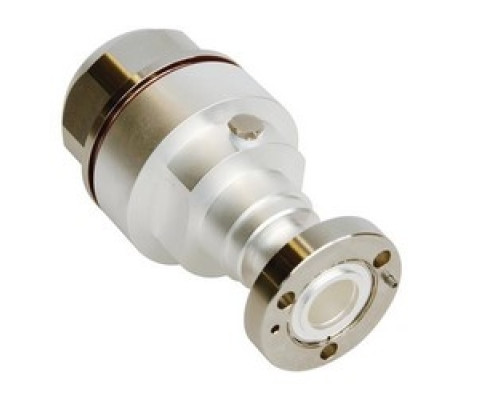

EIA Female Flange Without Gas Barrier
Operating Frequency Band: 0 - 2700 MHz
Insertion Loss (Typical): 0.05 dB
VSWR: 1.03 - 1.12
Nominal Size: 1-5/8 Inch
RF Operating Voltage (Maximum, VRMS): 2121 Volt
Average Power: 3.5 kW At 900 MHz
Return Loss: 38.00 - 25.10 dB
Operating Temperature: -40 to 150 deg C (-40 to 302 deg F)
Interface Durability: 50 Cycles
Cable Impedance: 50 Ohm
Connector Impedance: 50 Ohm
Insulation Resistance (Minimum): 5000 mOhm
DC Test Voltage: 6 Kilo-Volt
Diameter: 61.11 mm (2.41 Inch)
Interface: 7/8 Inch EIA Female Flange
Storage Temperature: -70 to 100 deg C (-94 to 212 deg F)
Peak Power Maximum: 90 kW
Body Style: Straight
Mounting Angle: Straight
Outer Contact Attachment Method: Tab-Flare
Inner Contact Attachment Method: Thread-In Stub
Inner Contact Plating: Unplated
Outer Contact Plating: Unplated
Gas Barrier: Yes
Dimension: 6.39Inch Length (162.33mm)
