Spec SheetFeatures
- Flexible Design
- Multiple mounting methods
- Plug-and-Play external batteries
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Wide input voltage range
- LED Indicators
- Optional Dry Contact I/O Accessory
- SmartSlot
Specification Description

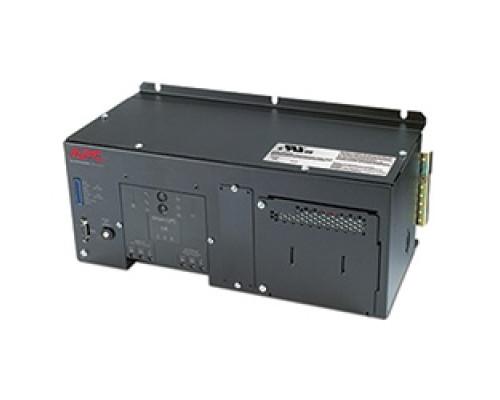

Uninterruptible Power Supply
Includes: CD With Software, Documentation CD, Installation Guide, Smart UPS Signalling RS-232 Cable
Output Power Capacity: 325 Watt/500 VA
Maximum Configurable Power: 325 Watt/500 VA
Nominal Output Voltage: 230 Volt
Efficiency At Full Load: 94%
Output Voltage Distortion: <5%
Output Frequency (Sync To Mains): 47 - 53 Hz For 50 Hz Nominal, 57 - 63 Hz For 60 Hz Nominal
Other Output Voltage: 220, 240 Volt
Topology: Line Interactive
Waveform Type: Sine Wave
Output Connections: (1) Hard Wire 3-Wire (H N + G)
Nominal Input Voltage: 230 Volt
Input Frequency: 50/60 Hz +/- 3 Hz (Auto Sensing)
Input Connection: Hard Wire 3-Wire (1PH+N+G)
Input Voltage Range For Main Operations: 160 - 286 Volt, 151 - 302 Volt (Adjustable)
Other Input Voltage: 220, 240 Volt
Battery Type: Maintenance-Free Sealed Lead-Acid battery With Suspended Electrolyte: Leakproof
Included Battery Modules: 1
Available Battery Module Slots: 1
Typical Recharge Time: 2 Hour
RBC(TM) Quantity: 1
Replacement Battery: APCRBC136
Interface Port: DB-9 RS232, (1) Smart-Slot
Control Panel: LED Status Display With Load And Battery Bar-Graphs And On Line: On Battery: Replace Battery: And Overload Indicators
Audible Alarm: Alarm When On Battery: Distinctive Low Battery Alarm: Configurable Delays
Emergency Power Off: Yes
Operating Environment: 0 to 50 deg C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0 - 3000 m
Storage Temperature: -15 to 45 deg C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0 - 15000 m
Audible Noise At 1 m From Surface Of Unit: 55 dBA
Online Thermal Dissipation: 90 BTU/Hour
Protection Class: IP20
Surge Energy Rating: 540 Joule
Filtering: Full Time Multi-Pole Noise Filtering: 0.3% IEEE Surge Let-Through: Zero Clamping Response Time: Meets UL 1449
Mounting: DIN Rail/Panel
Dimension: 148 mm Height x 362 mm Width x 171 mm Depth
