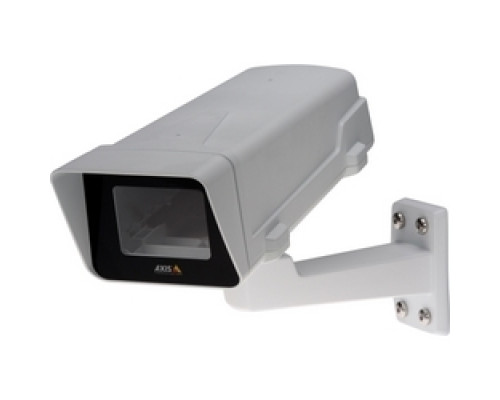

AXIS COMMUNICATIONS 5900-281 Fixed Box Outdoor Camera Housing Made of IK10 Impact-resistant and UV-resistant Polymer

Applications

For AXIS P13 Series, AXIS Q16 Series Cameras

Features

• Suitable to fit large CS-mount lenses
• Arctic temperature control
• Polymer casing
• -40 deg C/deg F with IEEE 802.3af
• Corridor format
• Ease of installation, Extra room for more
• Included accessories - AXIS T94Q01A wall mount, AXIS connector guard A, AXIS cable gaskets M20, screw bit T30, installation guide, required tool: Torx screwdriver T20, angled network cable (15 cm/5.9 Inch)

Specification Description

Item: Outdoor Housing
Material: Polymer Enclosure
Color: White NCS S 1002-B
Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, 15.4 Watt Maximum
Connectors: RJ45 For 10BASE-T/100BASE-TX PoE
Environment: Outdoor
Operating Conditions: -40 to 60 deg C (-40 to 140 deg F), 15-100% Relative Humidity (Condensing); With AXIS P13/Q16 Series: -40 to 45 deg C (-40 to 113 deg F)
Dimension: 400 mm x 100 mm x 251 mm

Tech Info

IP66- and NEMA 4X-rated, IK10-rated, EN 55022 Class B, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A & Class BICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-22
