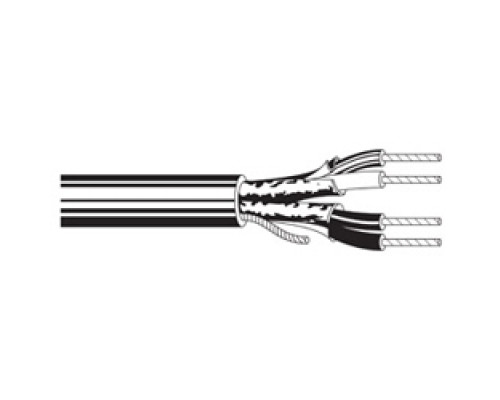

  • BELDEN 8723 060U1000 22 AWG stranded 7x30 TC conductors, polypropylene insulation, twisted pairs, individually Beldfoil shielded 100% coverage , 1000’ boxes, 24 AWG stranded TC drain wire, PVC jacket

BELDEN 8723 060U1000 22 AWG stranded 7x30 TC conductors, polypropylene insulation, twisted pairs, individually Beldfoil shielded 100% coverage , 1000’ boxes, 24 AWG stranded TC drain wire, PVC jacket

BELDEN 8723 060U1000 22 AWG stranded 7x30 TC conductors, polypropylene insulation, twisted pairs, individually Beldfoil shielded 100% coverage , 1000’ boxes, 24 AWG stranded TC drain wire, PVC jacket
Model:
8723 060U1000, B8723-U1000
SKU:
8723 060U1000, B8723-U1000
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Applications

Multi-conductor cable for residential, light commercial and institutional applications, AES/EBU digital audio cables, and audio and control interconnect cables.

Technical

Conductor Count
2 PAIRS
Conductor Material
TINNED COPPER
Conductor Size
22 AWG (AMERICAN WIRE GAUGE)
Conductor Type
STRANDED CONDUCTOR
Fire Rating
GENERAL PURPOSE
Insulation Material
PP-POLYPROPYLENE
Jacket Material
PVC-POLYVINYL CHLORIDE
NEC Rating
UL LISTED ART 800
Screen/Shield
YES
Screen/Shield Type
FOIL SHIELDED - ALUM/MYLAR
Shield Construction
INDIVL/FOIL SIDE & DRAIN OUT
