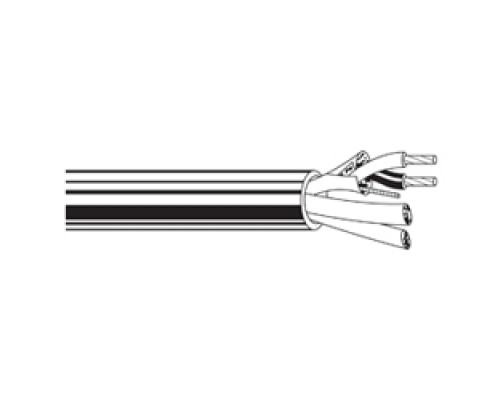

BELDEN 88778 0021000 Multi-Conductor - CMP Rated Plenum Cable 6 SH PR 22 AWG FEP FEP Red

BELDEN 88778 0021000 Multi-Conductor - CMP Rated Plenum Cable 6 SH PR 22 AWG FEP FEP Red
Model:
88778 0021000, B88778
SKU:
88778 0021000, B88778
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Technical

Conductor Count
6 PAIRS
Conductor Material
TINNED COPPER
Conductor Size
22 AWG (AMERICAN WIRE GAUGE)
Conductor Type
STRANDED CONDUCTOR
Fire Rating
PLENUM
Insulation Material
FEP-FLUORINATED ETHYLENE PROPYLENE
Jacket Material
FEP-FLUORINATED ETHYLENE PROPYLENE
NEC Rating
UL LISTED ART 800 PLENUM
Screen/Shield
YES
Screen/Shield Type
FOIL SHIELDED - ALUM/MYLAR
Shield Construction
INDIVL/FOIL SIDE & DRAIN OUT
