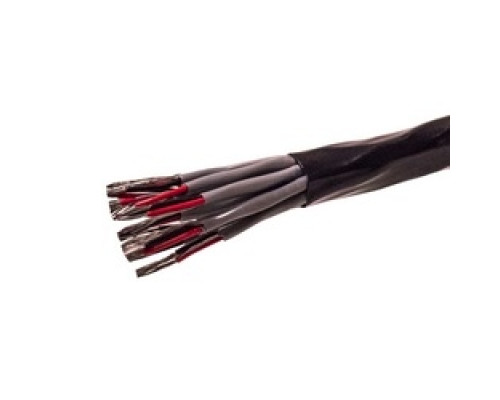

  • BELDEN BAV 1818P 0101000 Multi-Conductor Cable, CMP, 0.762mm Diameter, 22 AWG, 12 Pairs, 1000ft L, Tinned Copper Conductor

BELDEN BAV 1818P 0101000 Multi-Conductor Cable, CMP, 0.762mm Diameter, 22 AWG, 12 Pairs, 1000ft L, Tinned Copper Conductor

BELDEN BAV 1818P 0101000 Multi-Conductor Cable, CMP, 0.762mm Diameter, 22 AWG, 12 Pairs, 1000ft L, Tinned Copper Conductor
Model:
1818P 0101000, B1818P
SKU:
1818P 0101000, B1818P
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Technical

Conductor Count
12 PAIRS
Conductor Material
TINNED COPPER
Conductor Size
22 AWG (AMERICAN WIRE GAUGE)
Conductor Type
STRANDED CONDUCTOR
Fire Rating
PLENUM
Insulation Material
PO-POLYOLEFIN
Jacket Material
PVDF-POLYVINYLIDENE FLUORIDE (KYNAR)
NEC Rating
UL LISTED ART 800 PLENUM
Screen/Shield
YES
Screen/Shield Type
BRAID OVER FOIL SHIELD
Shield Construction
BRAID/MYLAR/BRAID OVERALL DBL BRAID
