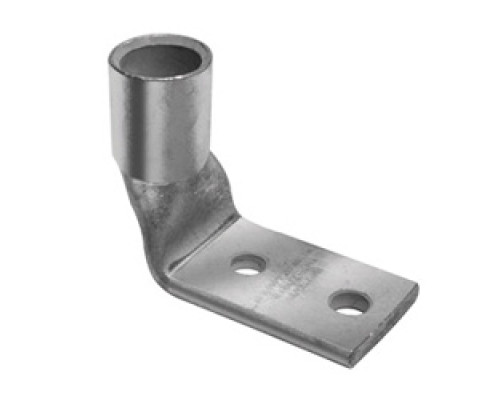

BURNDY YAV6CL2TC10FX90 518426 Copper Compression Lug, 2 Hole With Inspection Window, Short Barrel, #10 Stud, 6 AWG Flex & 6 AWG Solid & 6 AWG Stranded & 6 61/#24 DLO, Electro-Tin Plated, Blue, 0.63 Inch Stud Hole Spa

Features

• Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.

Specification Description

Compression Lug
Tongue Angle: 90 Degree
Length: 1.39 Inch
Tongue Type: Standard
Barrel Style: Chamfered
Bolt Hole Size: 0.20 Inch
Stud Size: #10
Barrel Type: Short
Thickness: 0.08 Inch
B Length: 0.5 Inch
Pad Width: 0.45 Inch
Hole to Hole Distance: 0.63 Inch
Strip Length: 9/16 Inch
Number Of Holes: 2
Wire Size: 6 AWG Flex, 6 AWG Copper Solid, 6 AWG Copper Stranded, 6 AWG (61/#24) DLO
Type Of Plating: Electro Plated Tin
Color Code: Blue
Index Number: 7
Material: Copper
