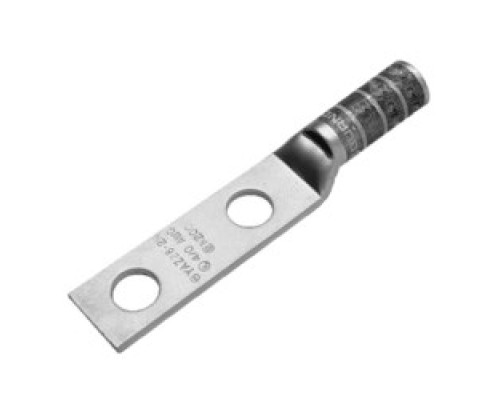

  • BURNDY YAZ392NT38 25017198 Copper Compression Lug, 2 Hole With Inspection Window, Long Barrel, 3/8 Inch Stud, 750 KCMIL, Electro-Tin Plated, Black

BURNDY YAZ392NT38 25017198 Copper Compression Lug, 2 Hole With Inspection Window, Long Barrel, 3/8 Inch Stud, 750 KCMIL, Electro-Tin Plated, Black

BURNDY YAZ392NT38 25017198 Copper Compression Lug, 2 Hole With Inspection Window, Long Barrel, 3/8 Inch Stud, 750 KCMIL, Electro-Tin Plated, Black
Model:
YAZ392NT38 25017198, YAZ392NT38
SKU:
YAZ392NT38 25017198, YAZ392NT38
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Features

  • Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.

Specification Description

Compression Lug
Tongue Angle: Straight
Length: 5.82 Inch
Tongue Type: Standard
Barrel Style: Skived
Bolt Hole Size: 0.39 Inch
Stud Size: 3/8 Inch
Barrel Type: Long
Thickness: 0.27 Inch
B Length: 2.88 Inch
Pad Width: 1.63 Inch
Hole to Hole Distance: 1 Inch
Strip Length: 2-15/16 Inch
Number Of Holes: 2
Wire Size: 750 KCMIL
Type Of Plating: Electro Plated Tin
Color Code: Black
Index Number: 24
Material: Copper

Technical

Barrel
LONG
Bolt Hole
3/8 INCH
Gauge
750KCMIL (AKA MCM)
Holes
2 HOLE
Inspection Hole
YES
Lug Material
COPPER
Type
STANDARD COMPRESSION
