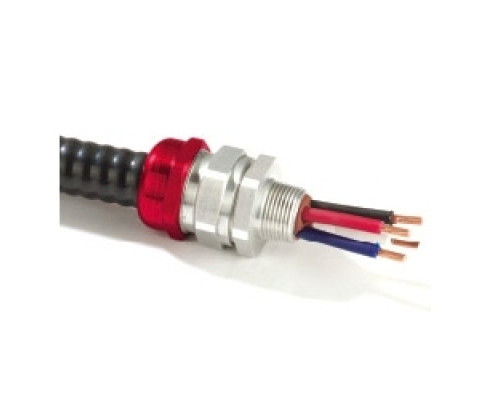

CMP TMCX150A Aluminum Cable Connector for MC or MC-HL 1/2" NPT cable range, 1.32-1.62

Features

• The cable connector provides a Compound Barrier Seal around the conductors, mechanical retention and electrical continuity via the armor termination and an environmental seal on the cable outer jacket.
• In addition this cable connector also offers Class I Zone 1 and Ex d IIC (CSA) certification. The reusable compression spring feature providing both
• Certified to CSA, ATEX (EN) & IECEx Standards.
• CMP renowned displacement seal provides NEMA 4X and IP66 levels of ingress protection.
• Additional integral Deluge Proof seal for extra protection in extremely harsh offshore and onshore environments.
• Independent sealing and armor clamping
• True 360 grounding
• Superior pull out prevention
• Compact slim profile
• Reduced installation time
• Widest cable acceptance range
• Supplied complete with epoxy sealing compound
• Disconnectable design
• Metric option available

Tech Info

CMP TMCX (single outer seal & inner compound seal) cCSAus CL 1 Division 1 ABCD, CL 1 Zone 1, Exd IIC. For type MC continuous & interlocked armor cables; cable types MC-HL, continuously welded corrugated aluminum, or interlocked aluminum or steel armor or Teck cable.
