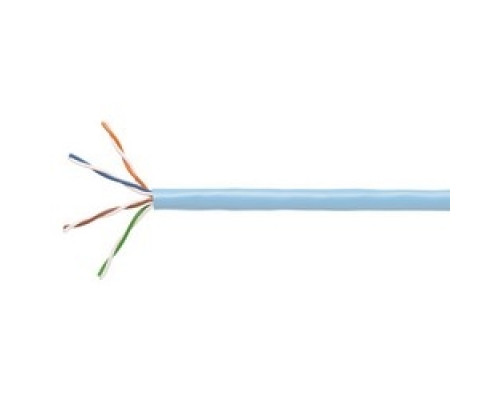

COMMSCOPE SYSTIMAX SOLUTIONS 106871809 1061C LB 4/24 W1000 Copper Cable, PowerSUM 1061C, Category 5e, 24 AWG, 4 Pair, Unshielded, UTP, Solid Bare Copper Conductor, PO/PVC, CM, Non-Plenum, Blue Jacket, 1000 FT, Box

Features

• Variety of colors available
• Meets or exceeds the Category 5 and Category 5e requirements in ISO/IEC 11801 (2002), EN50173-1 (2002) and ANSI/TIA-568-C.2
• Supports an operating voltage of 72 V DC between any conductors throughout the operating temperare range

Specification Description

U/UTP Cable
Jacket Material: PVC
Conductor Material: Bare Copper
Insulation Material: Polyolefin
Cable Length: 305 m (1000 ft)
Diameter Over Jacket: 0.205 Inch (5.207 mm)
Jacket Thickness: 0.022 Inch (0.559 mm)
DC Resistance Unbalance: 5% Maximum
DC Resistance: 9.38 Ohm/100 m Maximum
Mutual Capacitance: 5.6 nF/100 m At 1 kHz
Nominal Velocity Of Propagation: 69%
Operating Frequency: 200 MHz Maximum
Operating Voltage: 80 Volt Maximum
Dielectric Strength: 1500 Volt AC, 2500 Volt DC (Minimum)
Environmental Space: Non-Plenum
Installation Temperature: 32 to 140 deg F (0 to 60 deg C)
Operating Temperature: -4 to 140 deg F (-20 to 60 deg C)
Pair Quantity: 4
Cable Component Type: Horizontal
Jacket Color: Light Blue
Product Number: 1061C
Conductor Gauge: 24 AWG (Singles)
Conductor Type: Solid (Singles)
Conductor Quantity: 8
Pulling Tension: 25 lb (11 kg) Maximum
