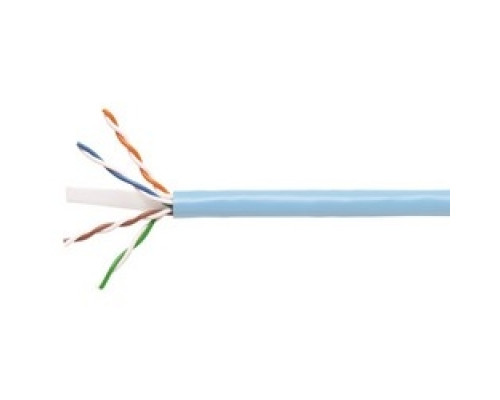

COMMSCOPE SYSTIMAX SOLUTIONS 700211964 1071E LBL C6 4/23 U/UTP W1000 GigaSPEED XL 1071E ETL Cat 6 Cable, 23 AWG, 4 Pair, U/UTP Unshielded, Bare Copper, Solid Conductor, Non-Plenum, PVC Jacket, Light Blue

Features

• 4-pair U/UTP construction with patented bi-sector separator tape provides the added performance margin required to support high bandwidth applications at an economical price
• Can support network line speeds in excess of 1 gigabit per second
• Qualifies for a 20-year product and applications assurance warranty when included as part of a certified SYSTIMAX GigaSPEED XL channel

Specification Description

Number of Conductors: 8
DC Resistance Unbalance (Max): 5%
DC Resistance (Max): 7.61 ohms/100 m
Diameter Over Jacket: 5.893 mm (0.232 in)
Dielectric Strength (Min): 1.5 kVAC (2.5 kVDC)
Flame Test Method: CMG, CMR
Installation Temperature: 0 C to +6 (+32 F to +140 F)
Insulation Material: Polyolefin
Jacket Thickness: 0.559 mm (0.022 in)
Mutual Capacitance: 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP): 69%
Operating Frequency (Max): 300 MHz
Operating Temperature: -20 C to +60 4 F to +140 F)
Operating Voltage (Max): 80 V
Packaging Type: WE TOTE box
Pulling Tension (Max): 11 kg (25 lb)
Separator Material: Polyolefin
Separator Type: Bisector
Transmission Standards: ANSI/TIA-568-C.2, CENELEC EN 50288-6-1, ISO/IEC 11801 ClE
UL Temperature Rating: 75 C (167 F)
