Model:
760007070 MFC-SCR-09-BG, 266858SKU:
760007070 MFC-SCR-09-BG, 266858Availability:
In Stockdocuments:
Spec Sheet
$6.00
Features
- Performance exceeds ANSI/TIA/EIA-568-C.2 standard
- Superior insertion loss performance
- Designed to allow for simple and speedy termination of the connector onto 900 micron buffered fiber or 1.6 mm fiber cordage or 2.9 mm fiber cordage
- Complete tool kit with cleaning solution, wipes, and scrap fiber container designed for Qwik setup and tear-down and comes packaged in a 25 counter installer pack that is portable and convenient
- The benefits of this product are further complimented by being the same overall size of the standard epoxy/polish ST products
Specification Description

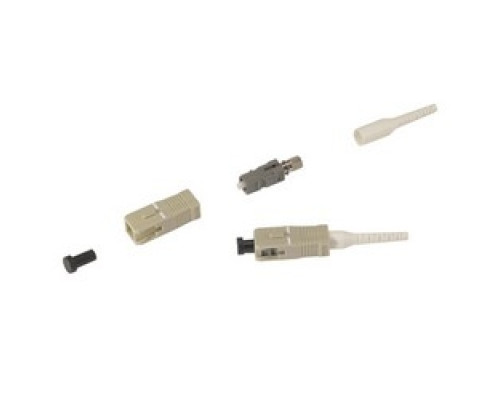

Behind The Wall Pre-Radiused SC Connector
Fiber Type: LazrSPEED 150, 50 um Multimode Fiber (OM2+); LazrSPEED 300, 50 um Multimode Fiber (OM3); LazrSPEED 550, 50 um Multimode Fiber (OM4); OptiSPEED, 62.5 um Multimode Fiber (OM1)
Ferrule Geometry: Pre-Radiused
Ferrule Material: Zirconia
Compatible Cable Diameter: 0.035 Inch (0.9 mm)
Length: 2.05 Inch (52 mm)
Interface: SC
Body Style: BTW
Interface Feature: Standard
Color: Beige
Cable Retention Strength: 1 lb At 0 Degree Maximum
Insertion Loss: 0.3 dB Typical
Return Loss: 20 dB (Minimum)
Insertion Loss Change: 0.3 dB (Mating and Temperature)
Technical
Connector Type
SC
Fiber Type
OM1/OM2/OM3/OM4 MULTIMODE
