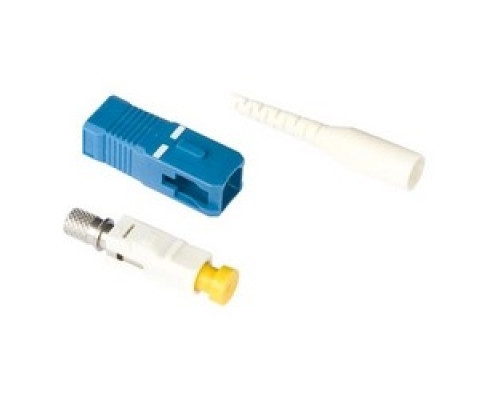

COMMSCOPE SYSTIMAX SOLUTIONS 760007112 SFC-SCR-09-BL Behind The Wall Pre-Radiused SC Connector For 0.9 mm Fiber, Single-Mode

Features

• Performance exceeds ANSI/TIA/EIA-568-C.2 standard
• Superior insertion loss performance
• Designed to allow for simple and speedy termination of the connector onto 900 micron buffered fiber or 1.6 mm fiber cordage or 2.9 mm fiber cordage
• Complete tool kit with cleaning solution, wipes, and scrap fiber container designed for Qwik setup and tear-down and comes packaged in a 25 counter installer pack that is portable and convenient
• The benefits of this product are further complimented by being the same overall size of the standard epoxy/polish ST products

Specification Description

Behind The Wall Pre-Radiused SC Connector
Fiber Type: TeraSPEED, Zero Water Peak Single-Mode Fiber (G.652.D, G.657.A1 or G.652.D, G.657.A1, OS2)
Ferrule Geometry: Pre-Radiused
Ferrule Material: Zirconia
Compatible Cable Diameter: 0.035 Inch (0.9 mm)
Length: 2.05 Inch (52 mm)
Interface: SC
Body Style: BTW
Interface Feature: Standard
Color: Blue
Cable Retention Strength: 1 lb At 0 Degree
Insertion Loss: 0.3 dB Typical
Return Loss: 55 dB (Minimum)
Insertion Loss Change: 0.3 dB (Mating and Temperature)
