Spec Sheet
Features
- 4-pair construction with aluminum foil tape and isolator center member provides extra margin of performance required for high-bandwidth applications
- Cables constructed with a single jacket for optimum size and improved handling
- Can support network line speeds up to 10 gigabits per second
- Qualifies for the SYSTIMAX 20-Year Extended Product Warranty and Applications Assurance when included as part of a registered SYSTIMAX GigaSPEED X10D channel
Specification Description

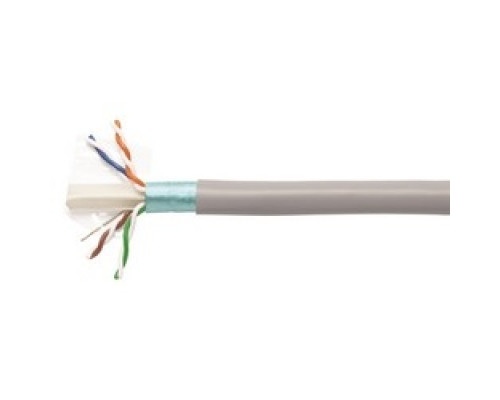

F/UTP Cable
Jacket Material: PVC
Conductor Material: Bare Copper
Drain Wire Material: Tinned Copper
Insulation Material: Polyolefin
Separator Material: Polyolefin
Shield (Tape) Material: Polyester/Aluminum Shield
Cable Length: 305 m (1000 ft)
Diameter Over Jacket: 0.296 Inch (7.518 mm)
Jacket Thickness: 0.020 Inch (0.508 mm)
DC Resistance Unbalance: 4% Maximum
DC Resistance: 8 Ohm/100 m Maximum
Mutual Capacitance: 5.6 nF/100 m At 1 kHz
Nominal Velocity Of Propagation: 68%
Operating Frequency: 500 MHz Maximum
Operating Voltage: 80 Volt Maximum
Dielectric Strength: 1500 Volt AC, 2500 Volt DC (Minimum)
Environmental Space: Non-Plenum
Installation Temperature: 32 to 140 deg F (0 to 60 deg C)
Operating Temperature: -4 to 140 deg F (-20 to 60 deg C)
Pair Quantity: 4
Cable Component Type: Horizontal
Jacket Color: Slate
Product Number: 1291B
Conductor Gauge: 23 AWG (Singles)
Conductor Type: Solid (Singles)
Conductor Quantity: 8
Drain Wire Gauge: 24 AWG
Drain Wire Type: Solid
Separator Type: Isolator
Pulling Tension: 25 lb (11 kg) Maximum
