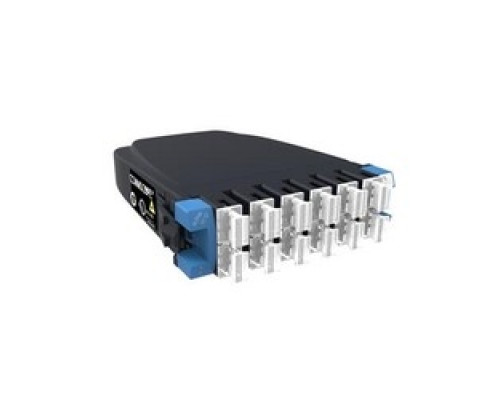

COMMSCOPE SYSTIMAX SOLUTIONS 760109975 360DM-12SC-SM Instapatch 360 Teraspeed Standard Module, 12 SC Fibers 6 Duplex Ports , Blue And Gray Finish

Features

• Small, compact module design offer improved density and is reverse compatible with the G2 modular cassette solution
• Translucent shutters and dust plugs allow for easy port identification utilizing a Visual Fault Locator (VFLs)
• Modules are availableith 12 or 24 LC connections or with 12 SC connections
• The Modular Panels offer excellent cable management and rear access, while minimizing bulk, complexity and potential restrictions to air flow
• The InstaPATCH 360 solution is iPatch-ready, offerinthe capability to upgrade to intelligent infrastructure management after the initial installation
• LazrSPEED modules and patch cords are constructed with LazrSPEED 550 OM4 fiber to provide headroom for future system upgrades
• TeraSPEED offers 60% incase in bandwidth due to Zero Water Peak in the E-band (1400 nm window) in single-mode applications
• Factory terminated and tested cable and apparatus for instant field connections with guaranteed quality and performance
• 24-fiber module option alignsell with systems that utilize a 8-fiber increment
• 12-fiber MPO connector based modular design enables simple connections
• Provides opportunities for lower total installed system cost (material plus labor)
• Up to 50% savings in space due to the inced density
• Designed for administrative convenience - guaranteed transmit-to-receive connectivity
• No special polarity components - single module design, standard patch cords
• Easy upgrade path to parallel connectivity and wavelength division multiing applications:
• - 40 Gbps / 100 Gbps Ethernet
• - 16 Gbps Fiber Channel
• Supports easy reconfiguration for moves, adds and changes
• Improved fiber patch cord management and improved labeling capabilities

Specification Description

Module
Fiber Type: TeraSPEED, Zero Water Peak Single-Mode Fiber
Total Fiber Quantity: 12
Interface: SC (Front), MPO (Rear)
Total Port Quantity: 12 (Front)
Interface Feature: Standard (Front), Reduced Footprint (Rear)
Color: Blue (Front), Gray (Rear)
Adapter Quantity: 1 (Rear)
Insertion Loss Change: 0.3 dB (Mating and Temperature)
Insertion Loss: 1.3 dB Maximum
Return Loss: 55 dB (Minimum)
Dimension: 1.20 Inch Height x 3.60 Inch Width x 4.60 Inch Depth (30.48 mm x 91.44 mm x 116.84 mm)
