Spec Sheet
Features
- Simple-to-use grounding solution
- Straight and Angled constructions, both iPatch (intelligence) Ready
- Supports 5 meter cables in 3 and 4 connector channels, 3 meter cables in 2 connector channels and cross connect cords down to 1 meter when using the GigaSPEED X10D Shielded High Density Information Outlet (HGS620)
- iPatch-Ready - field upgradable to iPatch without the need to remove patch cords, meaning no network downtime
- Trade Agreements Act (TAA) compliant
- Qualifies for the SYSTIMAX 20-Year Extended Warranty and Applications Assurance when included as part of a registered SYSTIMAX GigaSPEED X10D F/UTP channel
- Compatible with DYMO Labeling Solution
Specification Description

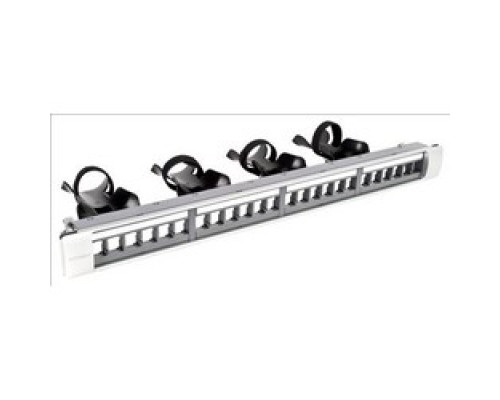

Evolve High Density Shielded Modular Panel
Dielectric Withstand Voltage: 1000 Volt AC At 60 Hz (RMS Contact-To-Contact)
Insulation Resistance: 500 MOhm Minimum
Operating Temperature: 14 to 140 deg F (-10 to 60 deg C)
Relative Humidity: Upto 95% Non-Condensing
Storage Temperature: -40 to 158 deg F (-40 to70 deg C)
Intelligence Type: iPatch Ready
Total Port Quantity: 24
Cable Type: F/UTP (Shielded)
Color: Cool Gray/Satin Chrome
Rack Type: EIA 19 Inch
Rack Unit: 1
Panel Style: Straight
Conductor Gauge: 22 AWG/24 AWG (Solid And Stranded)
Conductor Type: Solid/Stranded (7 Strands)
Material: High-Impact Flame Retardant Thermoplastic, Powder-Coated Steel
Outlet/Module Contact Plating: Precious Metals
Plug Insertion Life: 750 Times Minimum, IEC 60603-7 Compliant Test Plug
Plug Retention Force: 30 lbf (133 N) Minimum
Rear Termination Contact Plating: Nickel
Rear Termination Type: IDC
Wiring: T568A/T568B
Dimension: 1.72 Inch Height x 19 Inch Width x 6.5 Inch Depth (With Cable Management)
