Spec Sheet
Features
- Zero water peak single-mode fiber
- Maximizes support for lowest cost CWDM technology and delivers lowest cost path to future single-mode applications
- Supports legacy single-mode equipment and applications
Specification Description
Depth, with cable management: 6.50 in
Diameter Over Dielectric, maximum: 0.046 in
Diameter Over Dielectric, minimum: 0.030 in
Height: 3.50 in
Weight: 3.60 lb
Width: 19.00 in
ANSI/TIA Category: 6
Current Rating @ Current at Temperature: 1.5 A @ 20 5 A @ 68 F
Dielectric Withstand Voltage, RMS, conductive surface @ Voltage at Frequency: 1,500 V AC @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact @ Voltage at Frequency: 1,000 V AC @ 60 Hz
Insulation Resistance, minimum: 500 MOhm
Flambility Rating: UL 94 V-0
Operating Temperature: -10 C to +60 C (+14 F to +140 F)
Relative Humidity: Up to 95%, non-condensing
Safety Standard: cUL, UL
Storage Temperature: -40 C to +70 C (-40 F to +158 F)

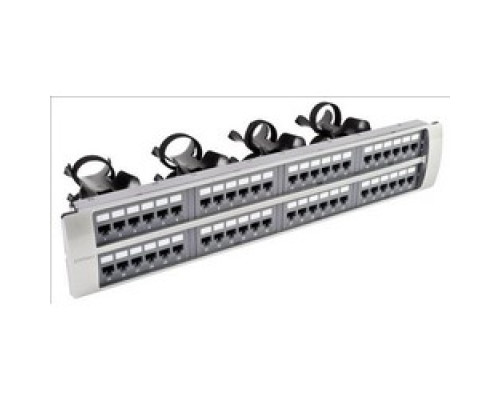

Brand: SYSTIMAX 360(tm), SYSTIMAX, GigaSPEED, Evolve
Cable Type: U/UTP (unshielded)
Color: Cool gray, Satin chrome
Intelligence Type: iPatch ready
Modules, quantity: 8
Product Type: Panel
Rack Type: EIA 19 in
Rack Units: 2
Total Ports, quantity: 48
Conductor Gauge, solid: 24 AWG, 22 AWG
r Gauge, stranded: 24 AWG, 22 AWG
Conductor Type: Solid, Stranded (7 strands)
Material Type: High-impact, flame retardant, thermoplastic, Powder-coated steel
Outlet/Module Contact Plating: Precious metals
Panel Style: Straight
Plug Insertion Life TePlug: IEC 60603-7 compliant plug
Plug Insertion Life, minimum: 750 times
Plug Retention Force, minimum: 30 lbf, 133 N
Rear Termination Contact Plating: Precious metals
Rear Termination Type: IDC
Wiring: T568A, T568B
Tech Info
ISO 9001:2008: Designed, manufactured and/or distributed under this quality management system; RoHS 2002/95/EC: Compliant
