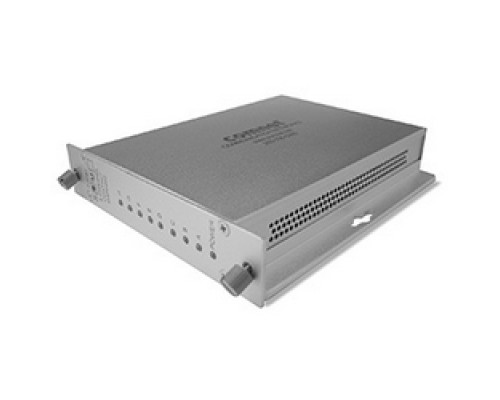

COMNET COMMUNICATION NETWORKS FDC8R232 8 Channel Contact Closure Receiver RS232

Features

• Transmits up to eight contact closures over one RS232
• link, or one optical fiber
• Eight channel Point-to-Point transmission architecture
• Power and eight individual channel status LED
• indicators
• Eight SPST latching relays (with individual indicators)Ôted and certified by an independent laboratory for
• full compliance with the environmental requirements
• (ambient operating temperature, mechanical shock,
• vibration, humidity with condensation, high-line/low-line
• voltage conditions and transient voltagprotection)
• of NEMA TS-1/TS-2 and the Caltrans Specification for
• Traffic Signal Control Equipment.
• Microprocessor-based logic and latching relays in
• receiver unit eliminate random contact closure status
• in the event of loss of link or loss of prime rating
• power.
• Relay contact rating: 30 VDC, 1 Amp, normally open
• Automatic resettable solid-state current limiters
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use
• ComFit
• Lifetime Warranty
