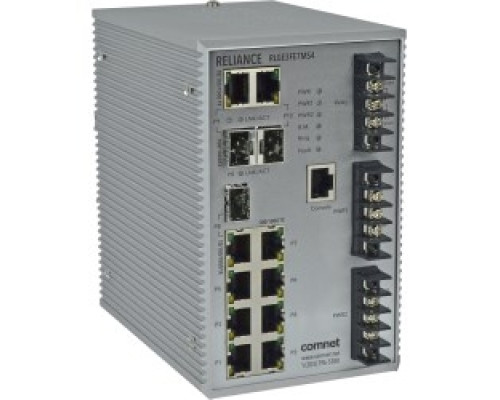

COMNET COMMUNICATION NETWORKS RLGE3FE7MS4 Electrical Substation-Rated Managed Ethernet Switch, With 7 10/100T X + 3 Configurable 10/100/1000T X /100/1000FX Ports

Features

• Fully compliant with the requirements of IEC 61850-3 and IEEE 1613 Class 2 for electrical utility substations, EN50155 for railway applications, and NEMA TS-1/TS-2 for traffic signal control equipment
• Compliant with EN60950-1 and UL 508 Class 1, Divisi on 2 (Groups A, B,C & D) for use in Hazardous Locations
• Environmentally hardened for deployment in difficult unconditioned out of-plant and roadside installations
• Extended ambient operating temperature range of -40 C to +85 C, for use in virtually any environment. Conformally coated for humidity with condensation or airborne particulate matter conditions
• Supports Modbus/TCP Protocol
• Supports IEC 62439-2 MRP Media Redundancy Protocol
• PTP Client for precision time protocol clock synchronization
• Rued metal housing. DIN-rail or panel-mountable, & rated for IP-30 ingress protection
• Internal/self-contained universal high-voltage power supply: 85-264 VAC/88-373 VDC operating range. Redundant power supply capability significantly reduces the possibil ity of a single-point-of-failure for the highest possible system and network reliability
• Utilizes C-Ring, the fastest redundant Ethernet ring available; Recovery time <10 ms with 250 units within a ring. Fully compatible and interoperable with the Moxa Turbo Ring topology using ComRing technology, and ComNet X-Ring, Dual-Homing, Couple Ring, and Dual-Ring Topologies
• Supports ComChain, the ComNet-exclusive technology that provides add-on network redundancy topology to any backbone network. ComChain a llows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology, while maximizing fault-recovery speed, flexibility, compatibility, ease of use, and cost-effec tiveness.
• eConsole-based Windows Utility for centralized switch and network management
• DDM (Digital Diagnostic Monitoring) remotely ascertains the status of the operating voltage, current, and operating temperature of the SFP modules
• IGMP Snooping V1/2/V3 for multicast filtering, and IGMP Query V1/V2
• Lifetime Warranty
