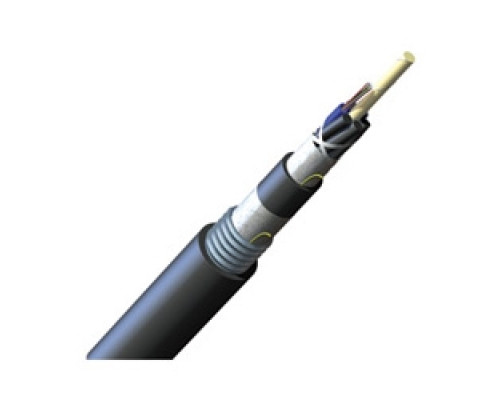

CORNING 012KUV-T4130D2N Industrial LSZH TM Loose Tube, Gel-Free, Corrugated Armored Cable, 12 fiber, 62.5 um multimode OM1

Applications

Aerial, Direct Buried, Duct, Tray Rated, General Purpose Horizontal, Vertical Riser

Features

• Corrugated armor - mechanical protection
• Low-smoke/zero-halogen LSZH(TM) sheath - key life-safety benefit
• Meets cyclic impact and chemical resistance test - superior performance
• Tray-rated per UL 13; UL 444; UL 1277; UL 1685; CSA C22.2 No. 230 and No. 232 - tested to industrial ruggedness standards
• Listed OFCR-LS and CSA OFC FT4-ST1; IEC 60332-3, IEC 61034 and IEC 60754-2 - meets burn test criteria

Specification Description

Buffer Tube Diameter (US): 0.1 in
Central Element: Dielectric
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fiber Count (cable): 12
Fibers per Tube: 12
Inner Jacket Material: Flame-retardant, non-corrosive / low-smoke, zero-halogen (FRNC / LSZH) material
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Ripcords: 3
Number of Tube Positions: 6
Outer Jacket Color: Black
Outer Jacket Material: Flame-retardant, non-corrosive / low-smoke, zero-halogen (FRNC / LSZH) material
Tape, Layer 2: Flame-retardant tape
Tape: Water-swellable
Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
Max. Tensile Strengths, Long-Term (Metric): 810 N
Max. Tensile Strengths, Long-Term (US): 180 lbf
Max. Tensile Strengths, Short-Term (Metric): 2700 N
Max. Tensile Strengths, Short-Term (US): 600 lbf
Min. Bend Radius Installation (Metric): 222 mm
Min. Bend Radius Installation (US): 8.7 in
Min. Bend Radius Operation (Metric): 148 mm
Min. Bend Radius Operation (US): 5.8 in
Nominal Outer Diameter (Metric-mm): 14.8 mm
Nominal Outer Diameter (US): 0.58 in
Weight (cable) (Metric): 238 kg/km
Weight (cable) (US): 160 lb/1000 ft
Temperature - Installation (Metric): -30 C to 60 C
Temperature - Installation (US): -22 F to 140 F
Temperature - Operation (Metric): -50 C to 75 C
Temperature - Operation (US): -58 F to 167 F
Temperature - Storage (Metric): -50 C to 75 C
Temperature - Storage (US): -58 F to 167 F

Tech Info

Approval and Listings: National Electrical Code (NEC) OFN-LS, OFN FT4-ST1, Sunlight Resistant (SUN RES), IEEE-383 flame test, Suitable for Direct Buried (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034; Common Installations: Outdoor lashed aerial and duct; indoor riser and general purpose horizontal according to National Electrical Code (NEC) Article 770
