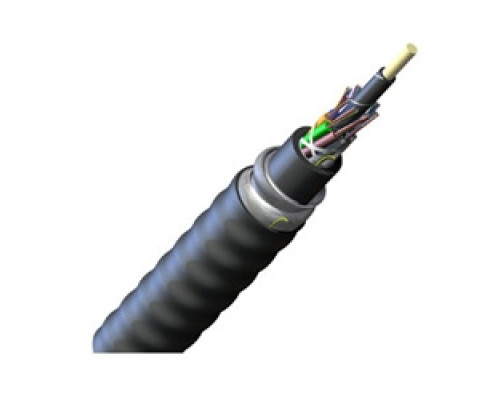

CORNING 024EUC-T4100A20 FREEDM Loose Tube, Gel-Free, Interlocking Armored Cable, Riser, 24 Fiber, Single-mode OS2

Applications

Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser

Specification Description

Cable Type: Loose Tube
Environment: Indoor/Outdoor
Fiber Category: Single-mode (OS2)
Flame Rating: Riser (OFCR)
Product Type: Interlocking armor
Buffer Tube Color Coding: Blue, Orange, Green, Brown, Slate, White, Red, Black
Buffer Tube Diameter (Me): 2.5 mm
Buffer Tube Diameter (US): 0.1 in
Central Element: Dielectric
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fiber Count (cable): 96
Fibers per Tube: 12
Inner Jacket Material: Flame-Retard UV-Resistant
Number of Active Tubes: 8
Number of Ripcords: 2
Number of Tube Positions: 8
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tape: Water-swellable
Tensile Strength Elements and/or Armoring - Layer 1: Intking armor
Max. Tensile Strengths, Long-Term (Metric): 810 N
Max. Tensile Strengths, Long-Term (US): 180 lbf
Max. Tensile Strengths, Short-Term (Metric): 2700 N
Max. Tensile Strengths, Short-Term (US): 600 lbf
Min. Bend Radius Installation (Metric):9 mm
Min. Bend Radius Installation (US): 12.2 in
Min. Bend Radius Operation (Metric): 206 mm
Min. Bend Radius Operation (US): 8.1 in
Nominal Inner Cable Diameter (Metric): 13.8 mm
Nominal Inner Cable Diameter (US): 0.54 in
Nominal Outer Diameter (Mc-mm): 20.6 mm
Nominal Outer Diameter (US): 0.81 in
Weight (cable) (Metric): 367 kg/km
Weight (cable) (US): 247 lb/1000 ft
Temperature - Installation (Metric): -10 C to 60 C
Temperature - Installation (US): 14 F to 140 F
Temperature - Operationtric): -40 C to 70 C
Temperature - Operation (US): -40 F to 158 F
Temperature - Storage (Metric): -40 C to 70 C
Temperature - Storage (US): -40 F to 158 F

Tech Info

Approval and Listings: National Electrical Code (NEC) OFCR, CSA OFC FT-4; Common Installations: Outdoor lashed aerial and duct; indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770; Design and Tes t Criteria: ANSI/ICEA S-104-696; Free of hazardous substances according to RoHS 2002/95/EG
