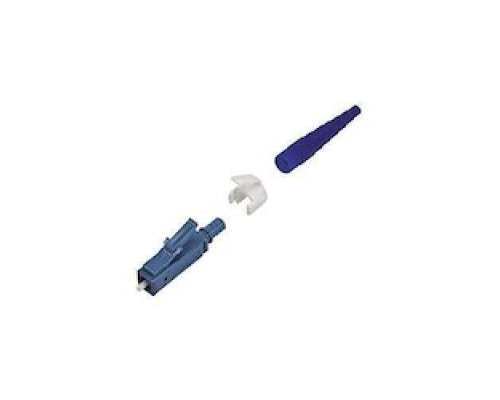

CORNING 95-201-98-SP Anaerobic Connector, LC, Single-mode OS2

Features

• Quick-cure epoxy
• No lamps or ovens needed Minimal tools and no index-matching gel
• Low installation cost Hand polished for minimum insertion loss
• Reliability and optical performance

Specification Description

Fiber Category: Single-mode (OS2)
Keyed: No
Product Type (FOJP): Field-Installable Connectors
Technology: Field Polish (anaerobic)
Boot Color: Blue
Connector Ferrule Material: Ceramic
Connector Housing Color: Blue
Connector Housing Material: Composite
Design - Connector Type: LC
Temperature Cycling: = 0.3 dB IL, -40 to +75C, 21 cycles
Insertion Loss, Max_ (Connector): = 0.75 dB
Insertion Loss, Typical (Connector): = 0.2 dB
Reflectance (Connector): = -40 dB

Tech Info

Intermateability: Compliant with TIA/EIA 604-10; Free of hazardous substances according to RoHS 2002/95/EG
