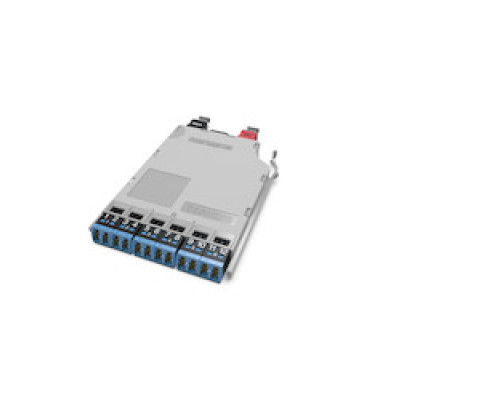

CORNING ETM-5B-G EDGE Tap Module, Single-mode OS2 , 50/50 Split Ratio Live/Tap , 12 F LC Duplex Ports, One Pinned MTP Adapter Labeled LIVE, One Pinned Red MTP Adapter Labeled TAP, Enables Six Monitored Ports, Universal Pola

Applications

Data Center LAN/SAN

Features

• Designed for Duplex based infrastructure solutions
• Utilizes advanced splitter technology
• Maintains equal modal power distribution, reducing insertion loss for increased link reach
• EDGE Solutions-based footprint

Specification Description

Fiber Category: Single-mode (OS2)
Product Type (FOH): Panels and Modules
Polarity: Universal
Adapter Color Back: Black/Red
Adapter Color Front: Blue
Adapter Type Back: MTP
Adapter Type Front: Shuttered LC
Fiber Count: 12
Number of Adapters per Panel: 6
Connector Type (Conn A): LC duplex
Ferrule Material (Conn A): Ceramic
Connector Type (Conn B): MTP (pinned)
Ferrule Material (Conn B): Composite
Dimensions (HxWxD) (Metric-mm): 12x90x165 mm
Dimensions (HxWxD) (US): 0.463x3.53x6.50 in
LC Connector Insertion Loss: 0.50 dB
MTP Connector Insertion Loss: 0.75 dB
Splitter Loss for Tap Modules: 3.6 dB LIVE / 3.6 dB TAP
