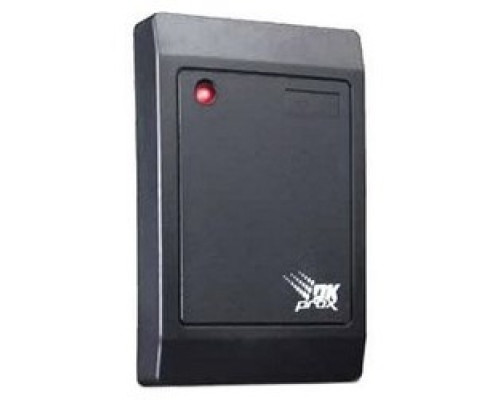

DOOR KING 1815-301 Proximity Card Reader, Single Gang, 12 Volt DC, 200 mA, 4 Inch Read Range, 125 kHz

Features

• Because physical contact is not required, proximity card readers can read card data through common building materials like: concrete, brick, stone, drywall, plaster, glass, wood, plastic in fact, through anything but metal
• Proximity card readers are ma intenance free. There are no parts to wear out or adjust
• Passive card technology provides an unlimited number of "Card reads" with no battery to wear out
• Passive cards, unless they are physically abused, will last virtually forever
• Clamshell, ISO grapic and keytar type cards are available
• Read ranges are not absolute and will vary depending on several factors including where the reader is mounted, the mounting surface and product application
• These card readers output their data in 26-bit wiegand format
• These card readers are not designed for stand-alone operation (see 1520/1524 readers) And must be connected to an access controller (DKS 1830 Series systems)
• Reads multiple types of cards And tags - a full line of standard cards, ISO graphics cards, keyfobs And tagged transmitters (ProxMitters)
• Long range AVI (automatic vehicle identification) readers operate up to 25 ft
• Indoor applications to control access to secure areas
• Card reader can also be mounted on an enclosure for outdoor applicatios
• Full line proximity card readers and cards
• Mullion, wall and post mount models
• 5 Year limited warranty
• 2 color LED (Red, Green), piezo beeper

Tech Info

UL/ETL Listed
