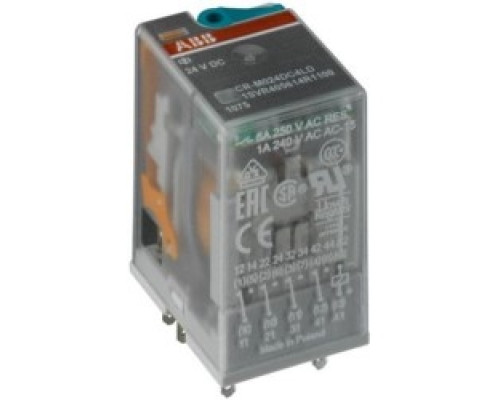

ABB 1SVR405612R1000 Pluggable Relay, Spdt, 3 C/O, 250V, 10A, No LED, 24 V DC

Applications

For Electrical Isolation, Amplification And Signal Matching Between The Electronic Controlling, E.G. PLC (Programmable Logic Controller), PC Or Field Bus Systems And The Sensor/Actuator Level

Features

• Cadmium-free contact material
• Width on socket: 27 mm
• Suited for logical or standard sockets
• Mechanical status indication
• Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC)
• Pluggable function modules: Reverse polarity protection/free wheeling diode, LED indication, RC element, overvoltage protection, time modules, logical or standard sockets

Specification Description

Coil: 24 V DC
Contact Configuration: 3 C/O (SPDT)
Contact Rating: 250 V, 10 A
Mounting: On Socket
Enclosure: IP40
Resistance: Contact: Less Than Or Equal To 100 mOhm, Coil: 640 Ohm At 20 deg C
Operating Cycles: Mechanical: Greater Than 20000000 Cyc Electrical: Greater Than 100000 Cycles
Operating Temperature: -40 To +70 deg C
Environmental Conditions: Storage Temperature: -40 To 85 deg C
Maximum Switching Voltage: 250 V DC
Switching Current: 5 mA Minimum
Operating Current: DC-12 (Resistive): A At 24 V, DC-13 (Inductive): 8 A At 24 V
Contact Material: AgNi
Rated Power: 0.9 W
Make Voltage: 19.2 V DC At 20 deg C
Insulation Voltage: 250 V AC
Operating Voltage: 250 V
Output Circuit: 11-12/14, 21-22/24, 31-32/34
Release Time: 3 msec
Insulalass: C250/B250
Response Time: 13 msec

Tech Info

C/US UR E244330 Listed, CSA_226920, CCC, CE, GOST, RMRS, VDE Certified, RoHS Compliant
