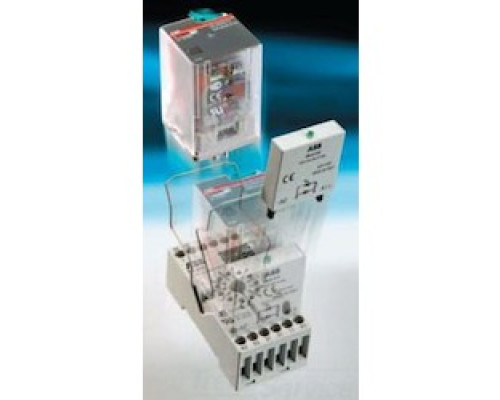

Applications
For Electrical Isolation, Amplification And Signal Matching Between The Electronic Controlling, E.G. PLC (Programmable Logic Controller), PC Or Field Bus Systems And The Sensor/Actuator Level
Features
- Cadmium-free contact material
- Width on socket: 27 mm
- Suited for logical or standard sockets
- Mechanical status indication
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC)
- Pluggable function modules: Reverse polarity protection/free wheeling diode, LED indication, RC element, overvoltage protection, time modules, logical or standard sockets
Specification Description
Coil: 24 V DC
Contact Configuration: 2 C/O (SPDT)
Contact Rating: 250 V, 10 A
Mounting: On Socket
Enclosure: IP40
Resistance: Contact: Less Than Or Equal To 100 mOhm, Coil: 430 Ohm At 20 deg C
Operating Cycles: Mechanical: Greater Than 20000000 Cyc Electrical: Greater Than 100000 Cycles
Operating Temperature: -40 To +70 deg C
Environmental Conditions: Storage Temperature: -40 To 85 deg C
Operating Current: DC-12 (Resistive): 10 A At 24 V, DC-13 (Inductive): 2 A At 24 V
Maximum Switching Voltag 250 V DC
Switching Current: 5 mA Minimum
Make Voltage: 19.2 V DC At 20 deg C
Contact Material: AgNi
Rated Power: 1.5 W
Insulation Class: C250
Response Time: 18 msec
Release Time: 7 msec
Insulation Voltage: 250 V AC
Operating Voltage: 250 V
Outuit: 11-12/14, 31-32/34
Tech Info
UR E244330 Listed, CSA_226920, CCC, CE, VDE, LR, GOST, RMRS Certified, RoHS Compliant
