Features
- Store up to 240 TB with front- accessible storage and expand to over 1.6 PB with exacqVision S-Series networked storage
- Continuously record up to 128 IP and 64 analog cameras at 1200 Mbps per server for surveillance vigilance
- Separate operating system and video storage volumes prevent loss of critical video
- Solid state drives and optional RAID 5 or RAID 6 provides uninterrupted operation
- Pre-loaded with exacqVision Professional software for out of the box simplicity
- Compatible with Illustra and thosands of other IP camera models, making it easy to find the right camera
Specification Description

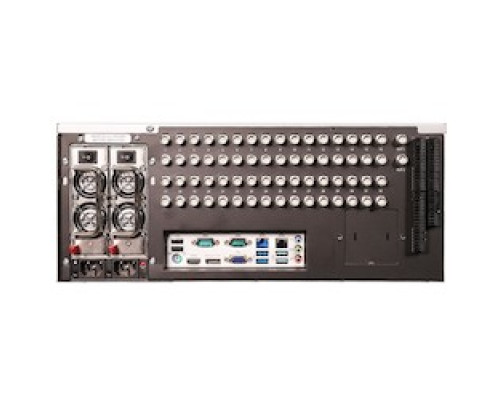

Rackmount 4U IP Camera Recorder With 8 IP Licenses (128 Maximum)
Hard Drive: 24 TB
Maximum IP Cameras: 128
Included IP Licenses: 8
Alarm Inputs: 8
Alarm Outputs: 3 TTL And 1 Relay
Maximum Storage: 20 TB
Maximum Hard Drives: 80 TB RAID 6
Typical Video Storage Rate: 800 Mbps (Windows)
Pre-Loaded VMS Software: Professional (Standard), Enterprise (Optional)
Local Client Display Rate: 1800 Mbps (Windows)
Monitor Output: 1 DVI-I + 1 HDMI + 1 Display Port, Maximum 2 Simultaneous Monitors
Operating System: Windows 7 64 Bits, Windows 2012 (Optional)
CPU: Gen 4 Intel Core i7, Gen 4 Intel Xeon E3 (Optional)
RAM: 8 GB, 16 GB (Optional)
NIC: 2 x 1 Gbps, 2 x 10 Gbps SPF+ (Optional)
USB Ports: 8 (2 Front, 6 Rear)
DVD: Included
Serial Connection: 1 RS485
Audio Outputs: 1
Keyboard and Mouse: Included
Power Supply: Dual Hot Swap
Operating Temperature: 40 to 95 deg F (4.5 to 35 deg C)
Dimension: 27.000 Inch Depth x 16.875 Inch Width x 7.000 Inch Height
