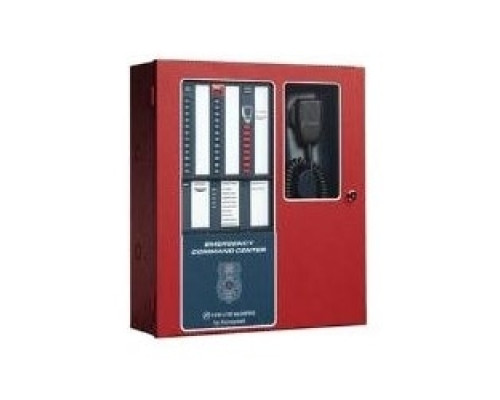

FIRELITE - HONEYWELL FIRE SYST ECC-50/100 Emergency Command Center, 120 VAC, 60 Hertz, 3.5A, 50/100 Watt, 8-Command Input Circuit

Features

• UL Listed to UL2572 Communication (Control Units Mass Notification Systems)
• Modular Design for Maximum System Flexibility and Easy Expansion
• 50 Watts of 25 V Audio Power (Expandable to 100 Watts) RMS
• Optional Amplifier Can Be Configured as a Backup inthe Event the Primary Amplifier Fails
• Amplifiers Are Independently Powered to Eliminate System Interruption During A Short Circuit Condition
• Eight Command Input Circuits to Activate Messages 1 to 8
• Seamless Integration and Control When Connected to Seect Fire-Lite Panels Through the ANN/ACS (EIA-485) Communication Bus
• Speaker Circuits are Expandable by Upto 8 Outputs (With an Optional Circuit Expander Module)
• Removable Terminal Blocks for Ease of Servicing and Module Replacement
• 2 Ampere Notificaton Appliance Circuit (NAC) Output, Sync Generator, or Follower for System Sensor, Wheelock or Gentex Protocols
• Integral Supervised Microphone
• 520 Hertz Square Wave Tones Can Be Uploaded to ECC-50/100 to Meet NFPA Low Frequency Requirements

Tech Info

UL2572
