Model:
5000C-12/24D-630 10190403, CS507380SKU:
5000C-12/24D-630 10190403, CS507380Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features

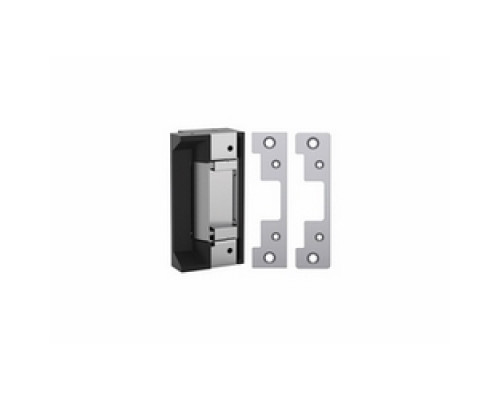

- The 5000 Series is a Compact, High Performance Electric Strike Designed for Low Profile Openings Where there is Limited Space Behind the Jamb
- Its Strength is Derived from a Unique Keeper Pin Locking Design, Enabling the 5000 to Exceed the Ratings of th e Frame, Door and Locking Hardware
- Tamper Resistant
Tech Info
UL 1034/294, ANSI/BHMA A156.31
Technical
ANSI Grade
GRADE 1
Finish
US32D SATIN STAINLESS STEEL
Frame Material
WOOD OR HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 5/8 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
CYLINDRICAL OR NARROW STILE MORTISE LATCH
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
