Model:
8300C-12/24D-630 10680403, CS445327SKU:
8300C-12/24D-630 10680403, CS445327Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features

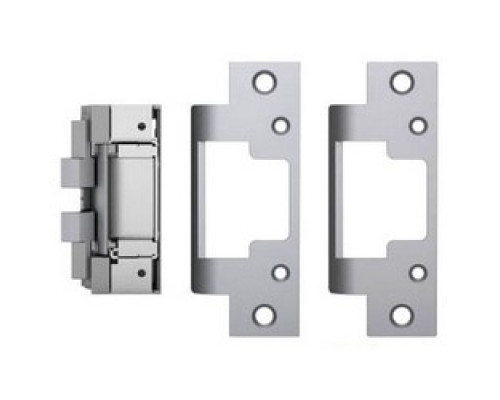

- The 8300 Series is a Fire Rated, Compact, High Performance Electric Strike Featuring a Unique Concealed Design for Use with Cylindrical Locksets
- No Cutting on the Frame is Required
- Simply Remove the Existing Strike Plate, Adjust the Vertical Alignment Feature to the Latchbolt Centerline, and Install
- Tamper Resistant
Tech Info
UL 10C/1034/294, ANSI/BHMA A156.31, CAN4-S104, NFPA-252, ASTM-E152
Technical
ANSI Grade
GRADE 1
Finish
US32D SATIN STAINLESS STEEL
Frame Material
WOOD OR HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 5/8 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
FOR USE WITH CYLINDRICAL LOCK
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL 3-HOUR FIRE AND BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
