Features

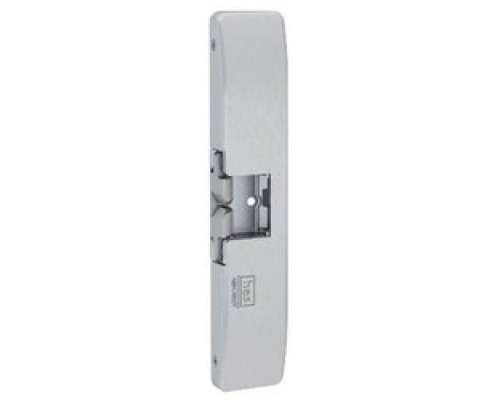

- The 9500 Series is a 3 Hour Fire-Rated, Surface Mounted Electric Strike Designed to Accommodate Rim Exit Devices with a 3/4 inch Throw Pullman Latchbolt
- All Components are Completely Encased within its 3/4 Inch Thick Stainless Steel Housing, So no Cutt ing on the Frame is Required for Installation
- Simply Place the Electric Strike on the Surface of the Frame, Align it with the Exit Latchbolt and Install
- Adjustments Have Never Been Easier as the Base is Now Separate from the Cover
- Tamper Resistant
Tech Info
UL 10C/1034/294, ANSI A250.13-2003, ANSI/BHMA A156.31, CAN4-S104, NFPA-252, ASTM-E152
Technical
ANSI Grade
GRADE 1
Finish
US32D SATIN STAINLESS STEEL
Frame Material
WOOD OR HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 3/4 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
FOR USE WITH SURFACE MOUNTED LOCKS
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL 3-HOUR FIRE AND BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
12 OR 24V DC
Warranty
5 YEAR LIMITED
